Agilent Technologies TriScroll 600 Series Major Maintenance Manual

12
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4
Remove and Disassemble the Orbiting
Plate

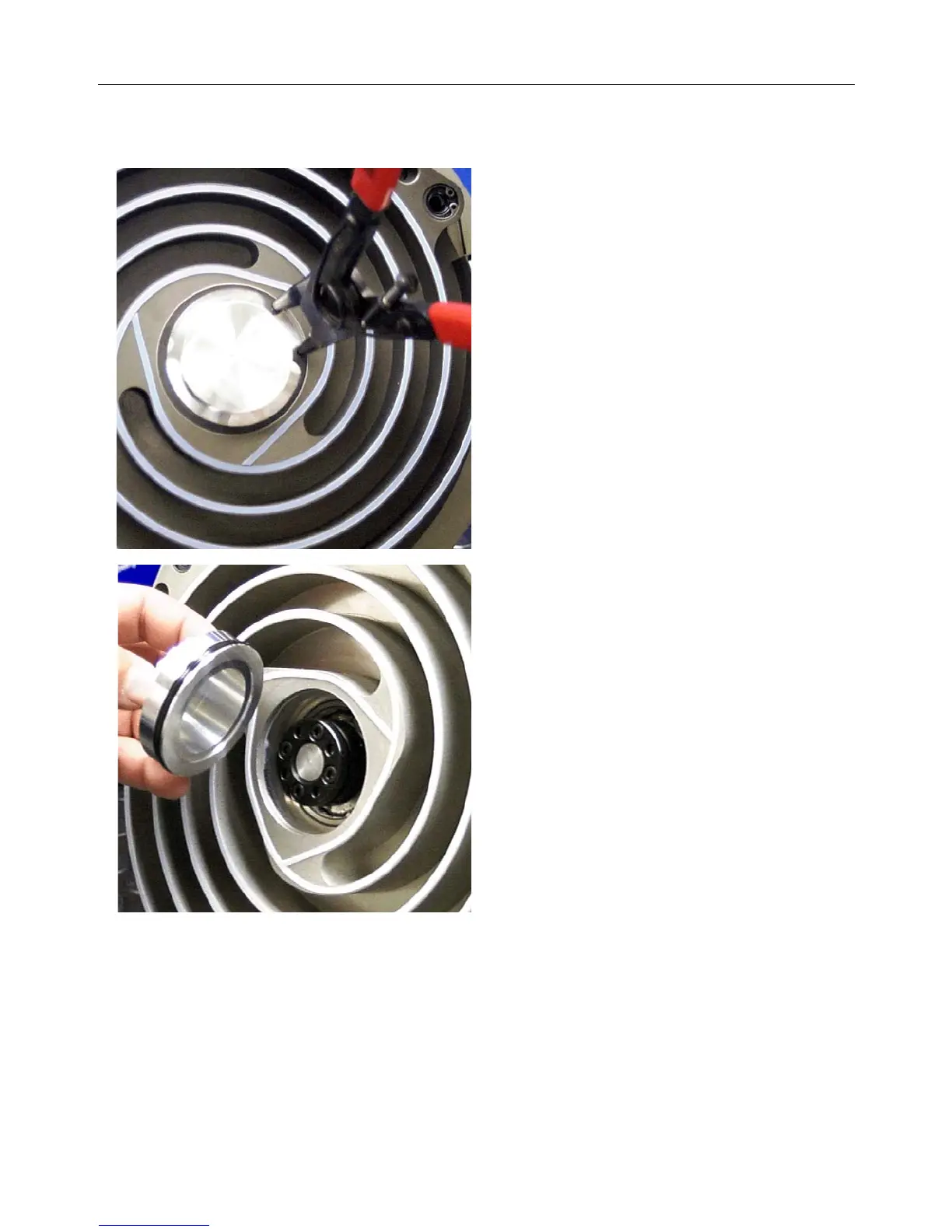

1. Remove the snap ring that is holding the
orbiting cup in the orbiting plate.
2. Remove the orbiting cup.
3. Remove and discard the O-ring.
TriScroll 600 Disassembly (continued)
