Agilent Technologies TriScroll 600 Series Major Maintenance Manual

13
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4

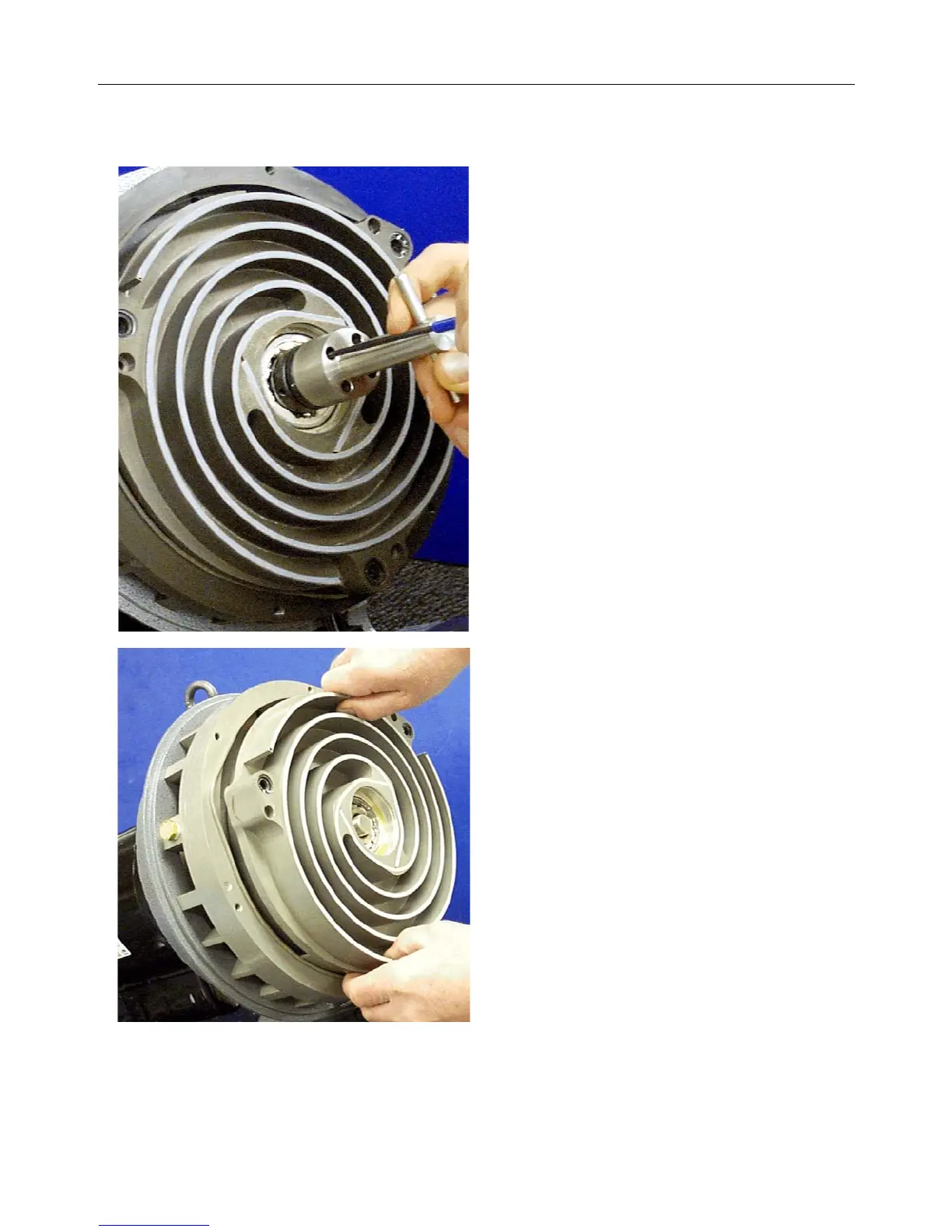

4. Use the locking nut wrench to hold the
locking nut.
5. Loosen the four M4x12 screws in the
locking nut.
6. Remove the locking nut.
7. Remove the orbiting plate from the
crankshaft.
TriScroll 600 Disassembly (continued)
