14
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

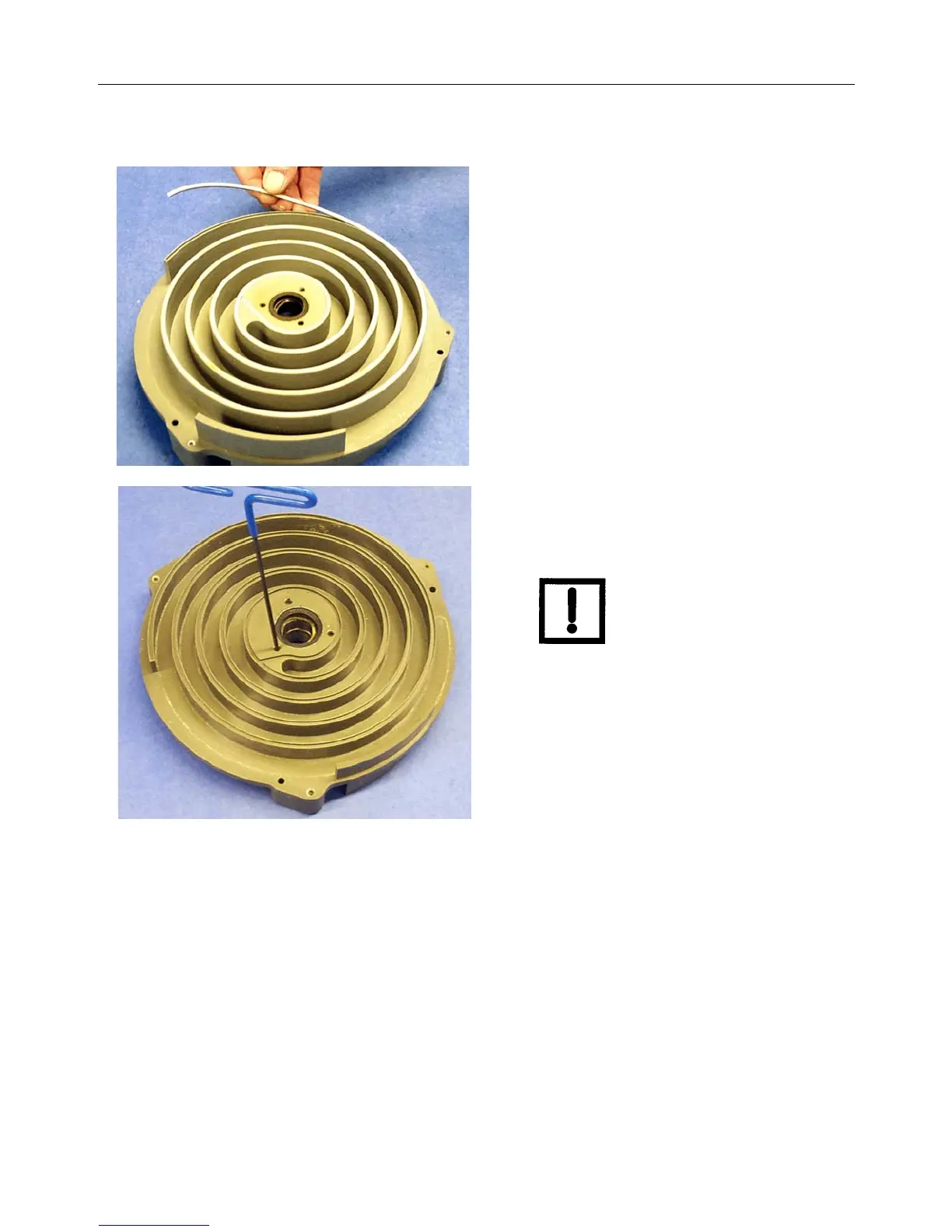

8. Remove and discard the tip seals from both
sides of the orbiting plate.
9. Remove the six M5x5 set screws from the
orbiting plate.
TriScroll 600 Disassembly (continued)
NOTE The set screws are held in
with Loctite.
