Agilent Technologies TriScroll 600 Series Major Maintenance Manual

72
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1
Install the Orbiting Plate
Tool required:
❑ Locking nut wrench
❑ Snap ring pliers
❑ Allen wrench
❑ Depth Gauge
❑ Krytox GPL 224 grease

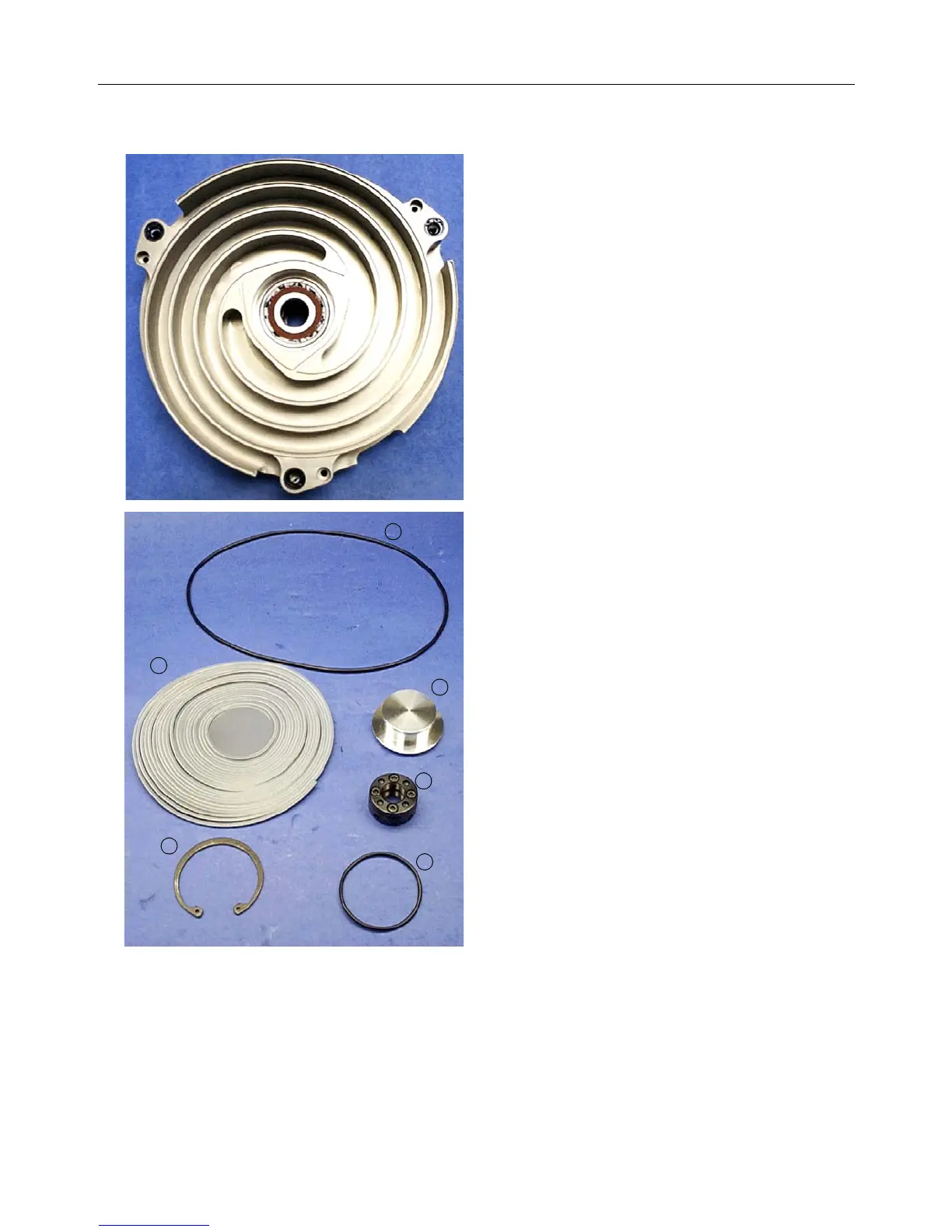

Locate the following parts:
❑ Orbiting plate assembly
Locate the following parts:
➀ O-ring, large, 2-273, included in
maintenance kit
➁ Orbiting cup
➂ Locking nut
➃ O-ring, small, 2-137, included in
maintenance kit
➄ Snap ring
➅ Tip seals, included in maintenance kit
Final Assembly (continued)
1
2
4
5
6
3
