Agilent Technologies TriScroll 600 Series Major Maintenance Manual

73
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1

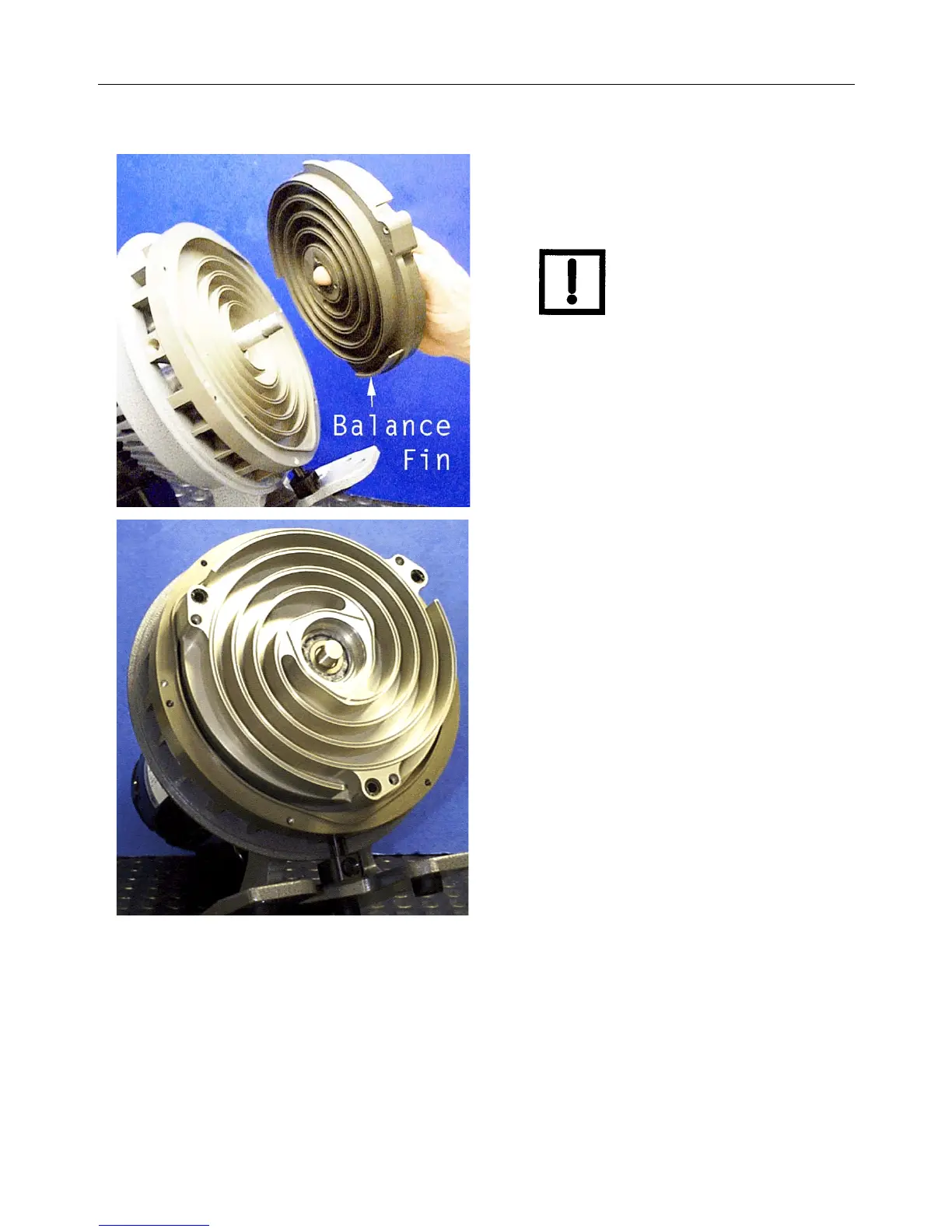

1. Slide the orbiting plate assembly onto the
crankshaft and into the inboard housing.
Final Assembly (continued)
NOTE The balance fin on the
orbiting plate should be
oriented in the
downward position when
sliding the orbiting plate
onto the crankshaft and
into the inboard housing.
