Agilent Technologies TriScroll 600 Series Major Maintenance Manual

35
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4
Inboard Housing Assembly
Insert the Shaft Seal
Tools required:
❑ Arbor press
❑ Seal installation tool
❑ Krytox GPL 224 grease

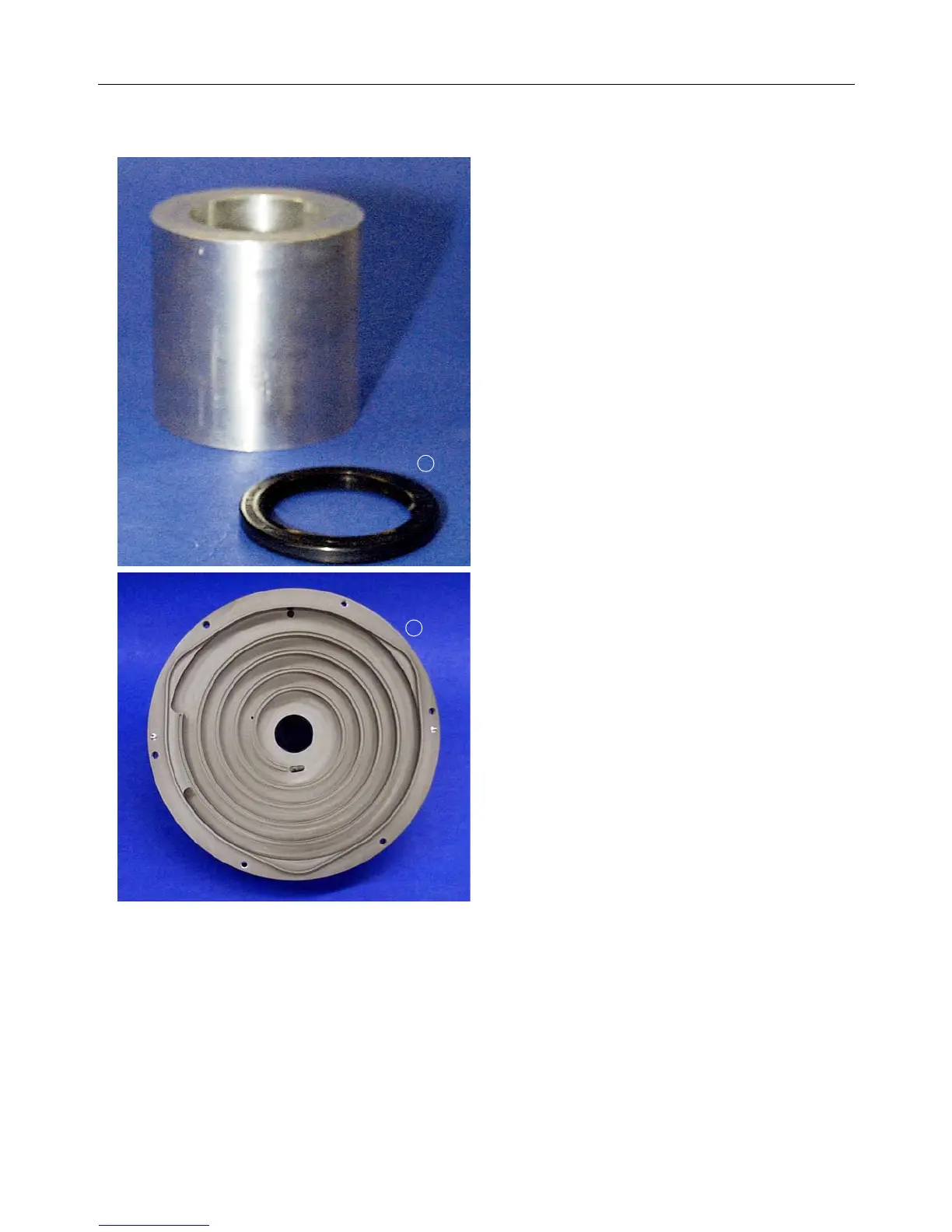

Locate the following parts shown in the photos
to the left:
➀ Shaft seal, 32x42x4, included in
maintenance kit
➁ Inboard housing
1
2
