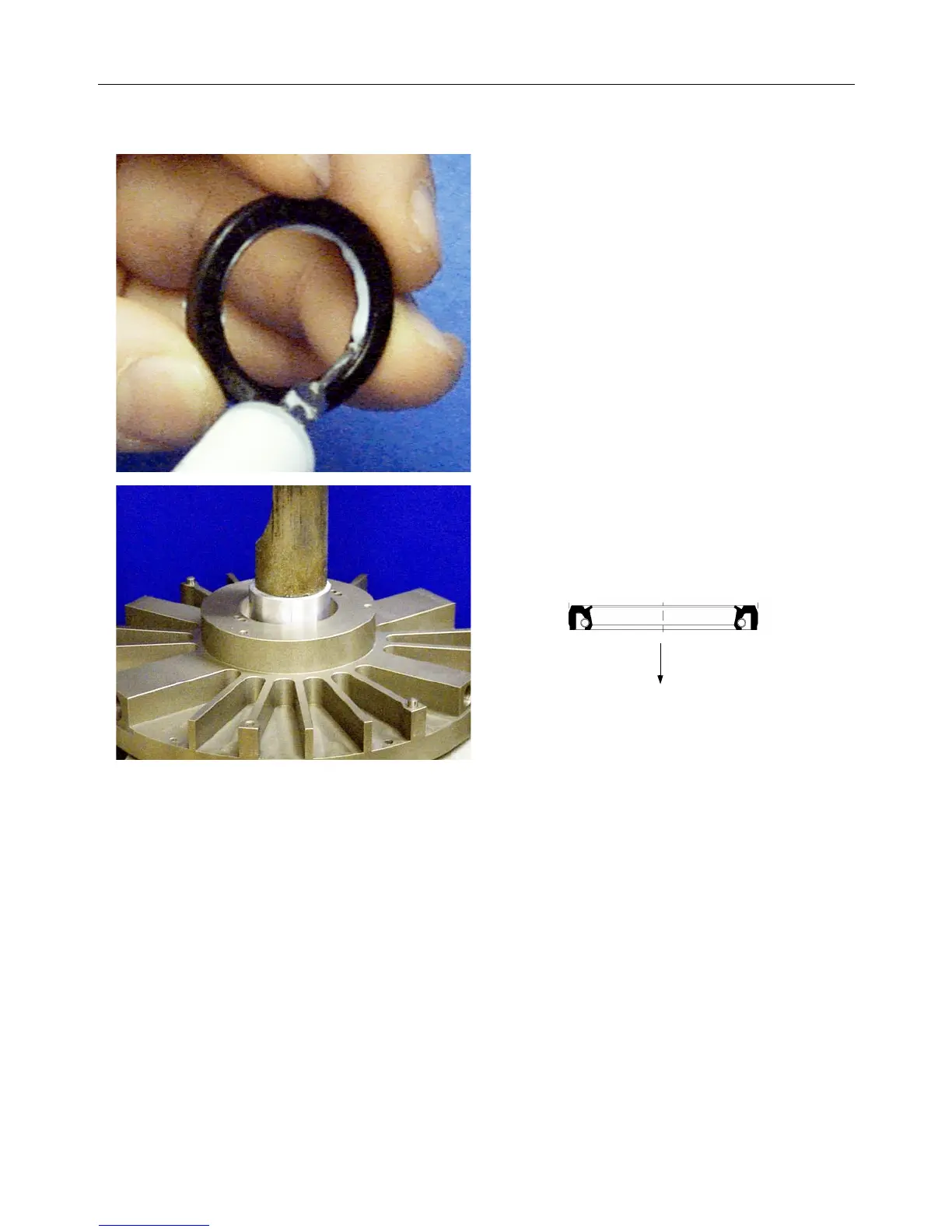

1. Using Krytox GPL 224, grease the inner
diameter of the shaft seal between its lips.
2. Using the seal insertion tool, press the shaft
seal (32x42x4) into the bore of the inboard
housing from the fin side.
Inboard Housing Assembly (continued)
Observe Proper Orientation
Into Bore
