Agilent Technologies TriScroll 600 Series - Intake Fitting Reassembly

8
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4
Remove and Disassemble the
Outboard Housing

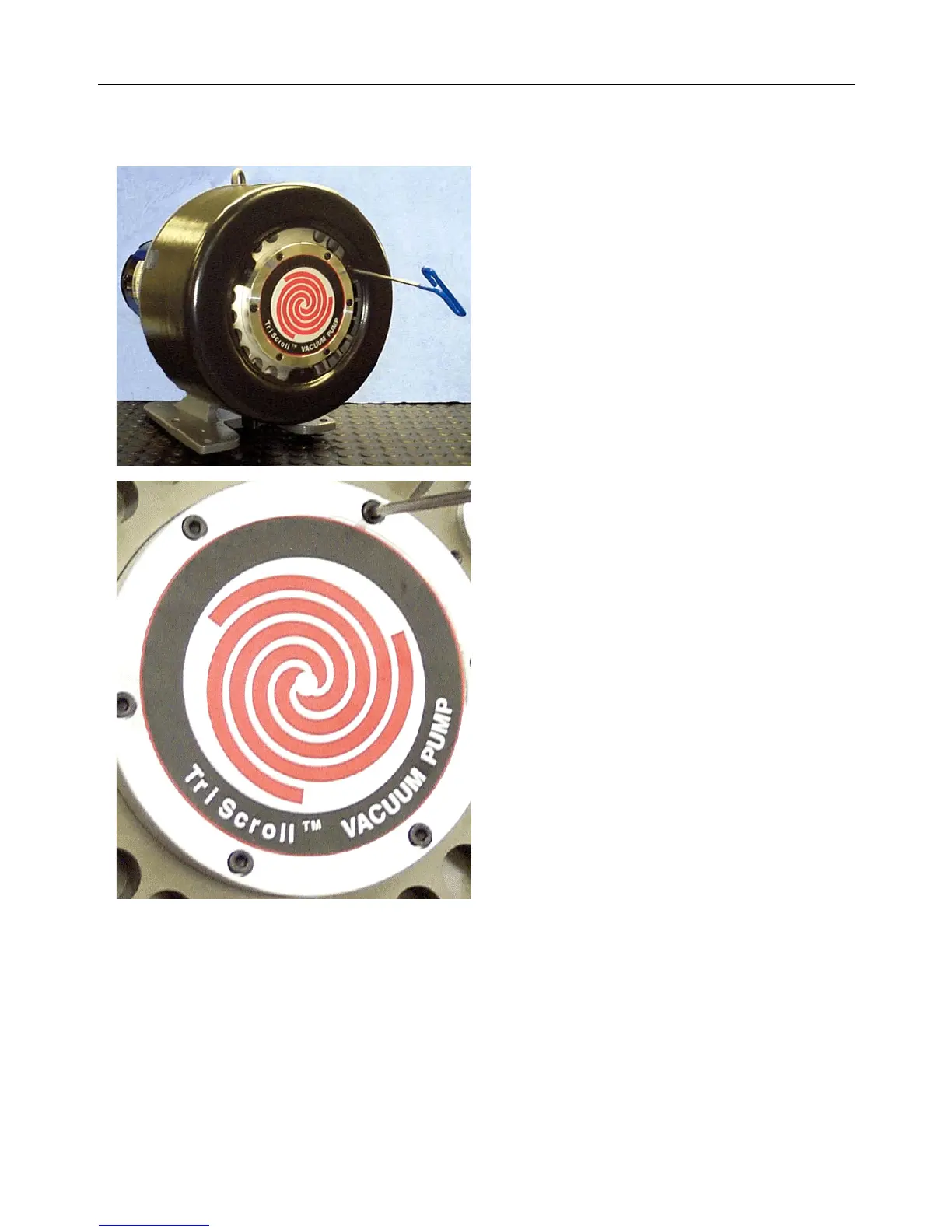

1. Remove the three M5x16 screws that attach
the cowling to the module.
2. Remove the cowling.
.
3. Remove the six M5x22 screws that attach
the outboard cover to the outboard housing.
TriScroll 600 Disassembly (continued)
