Agilent Technologies TriScroll 600 Series - Pump Conditioning and Performance Verification

9
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4

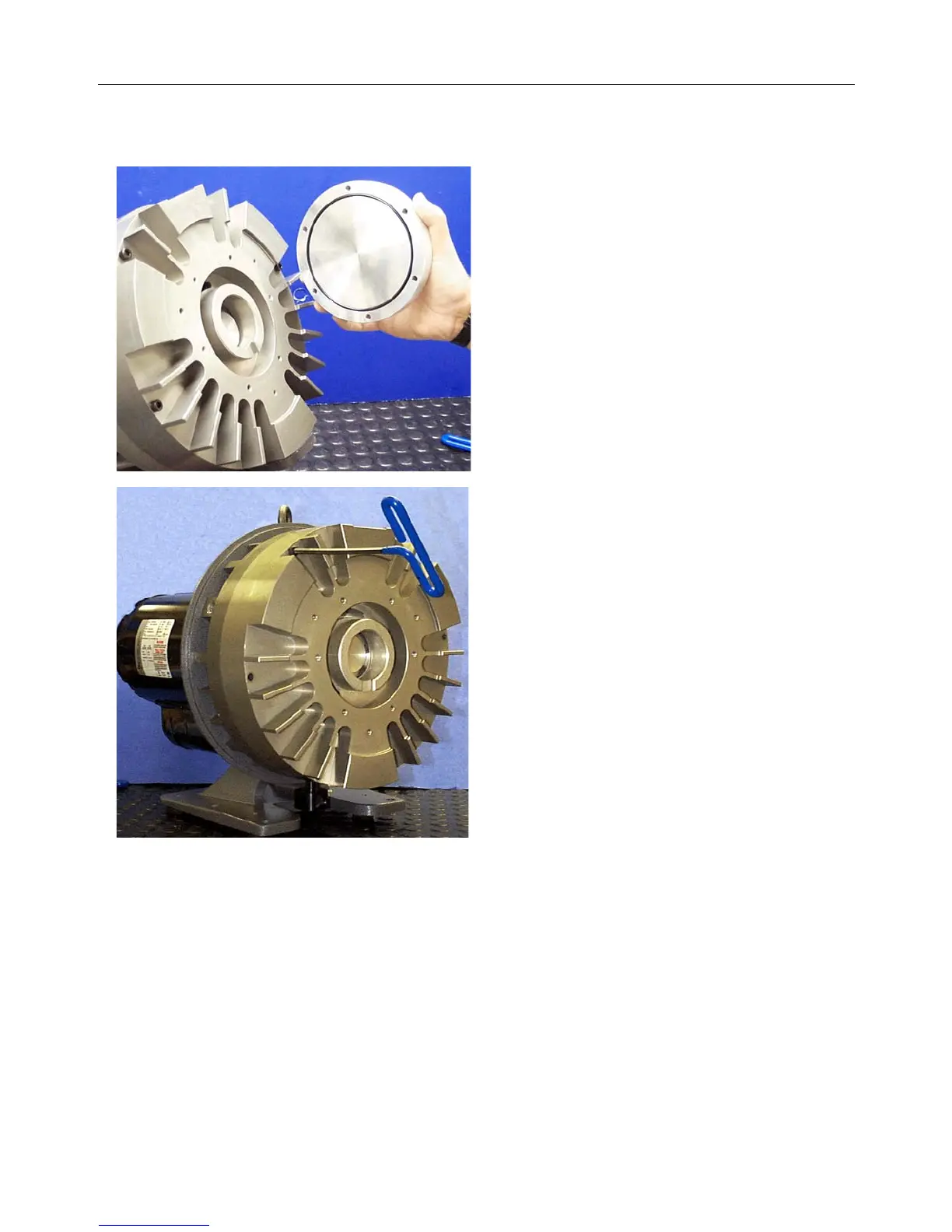

4. Remove the outboard cover.
5. Remove and discard the O-ring.
6. Remove the six M6x55 screws that attach
the outboard housing to the outboard
housing.
7. Remove the outboard housing.
8. Remove and discard the O-ring from the
inboard housing.
TriScroll 600 Disassembly (continued)
