Agilent Technologies TriScroll 600 Series Major Maintenance Manual

44
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4
Exhaust Port Reassembly
PTS06001UNIV and PTS06003UNIV only
Tools required:
❑ Right angle snap ring pliers
❑ Krytox GPL 224 grease

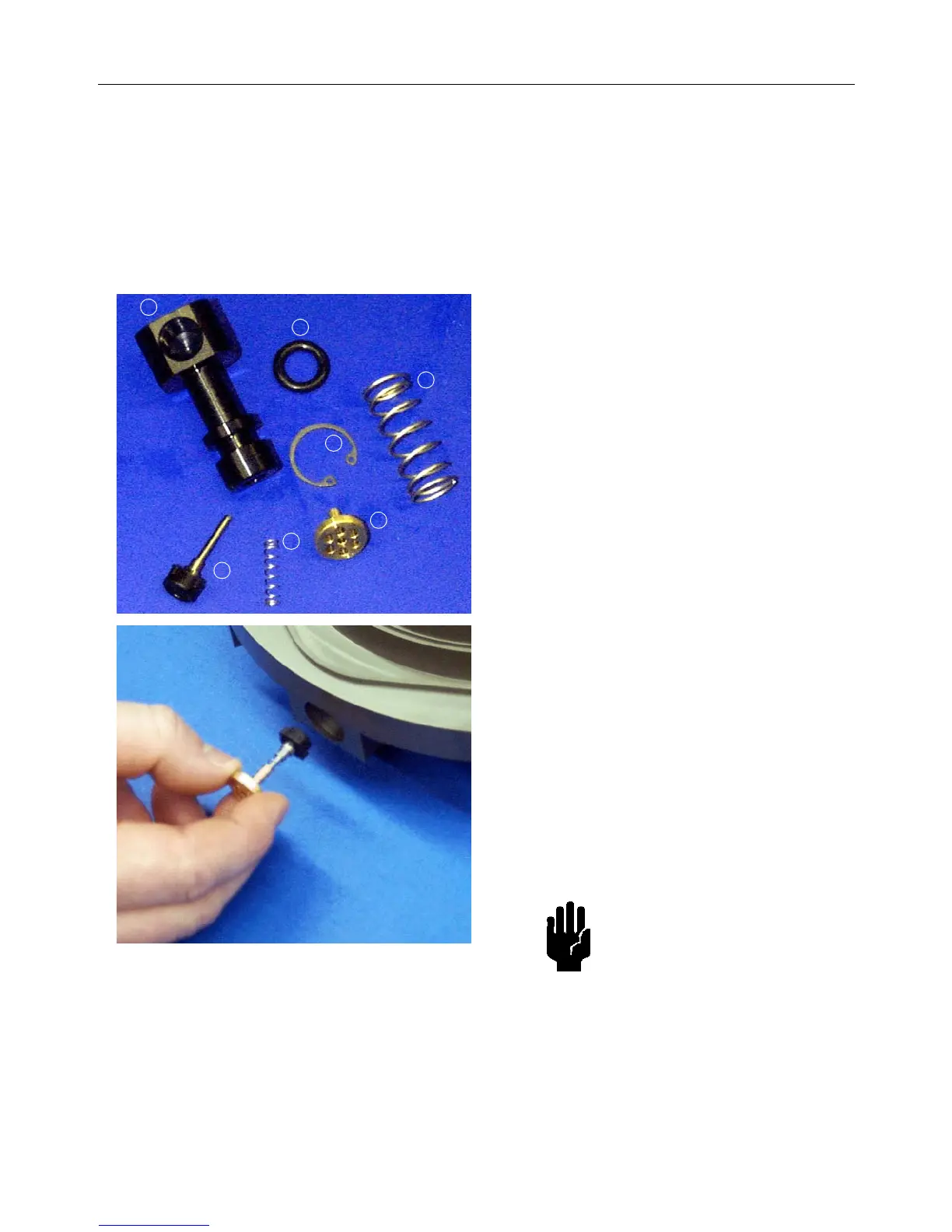

Locate the following parts:
➀ Spring, large
➁ Plunger guide
➂ Spring, small
➃ Check valve assembly
➄ Exhaust fitting
➅ O-ring, 2-207, included in maintenance kit
➆ Snap ring
PTS06001UNIV and PTS06003UNIV only
1. Place the small spring onto the plunger
guide.
2. Place the check valve onto the plunger
guide.
3. Insert the check valve assembly, check
valve first, into the exhaust port on the
inboard housing.
4. Observe the proper orientation as shown in
photo on the left.
Inboard Housing Assembly (continued)
4
5
6
7
3
1
2
CAUTION Ensure that the check valve
assembly remains on the
plunger guide when
inserted into the exhaust
port.
