TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4
PTS06001UNIV and PTS06003UNIV only
1. Apply a small amount of Loctite PST 567
pipe sealant to the first few threads of
breather vent.
2. Insert the breather vent into the air ballast
port and tighten.
PTS06101UNIV and PTS6103UNIV only
1. Apply a small amount of Loctite PST 567
pipe sealant to the first few threads of
1/4 NPT brass plug.
2. Insert the plug into the air ballast port and
tighten.
3. Apply a small amount of Loctite PST 567
pipe sealant to the first few threads of the
second 1/4 NPT brass plug.
4. Insert the plug into the bearing purge port
and tighten.
Inboard Housing Assembly (continued)

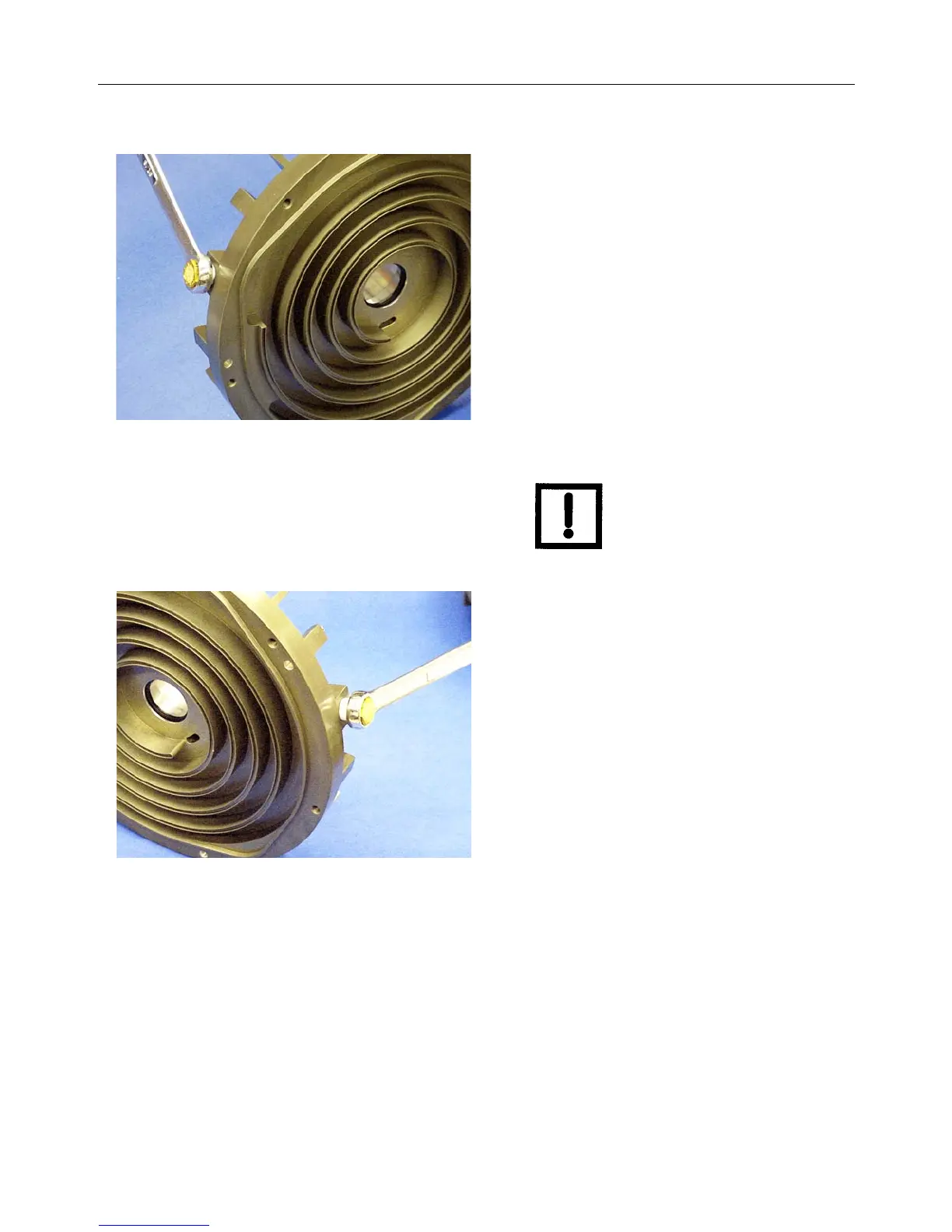

NOTE The photo shows a
breather vent being
installed into the air ballast
port.
