45
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4
PTS06001UNIV and PTS06003UNIV only

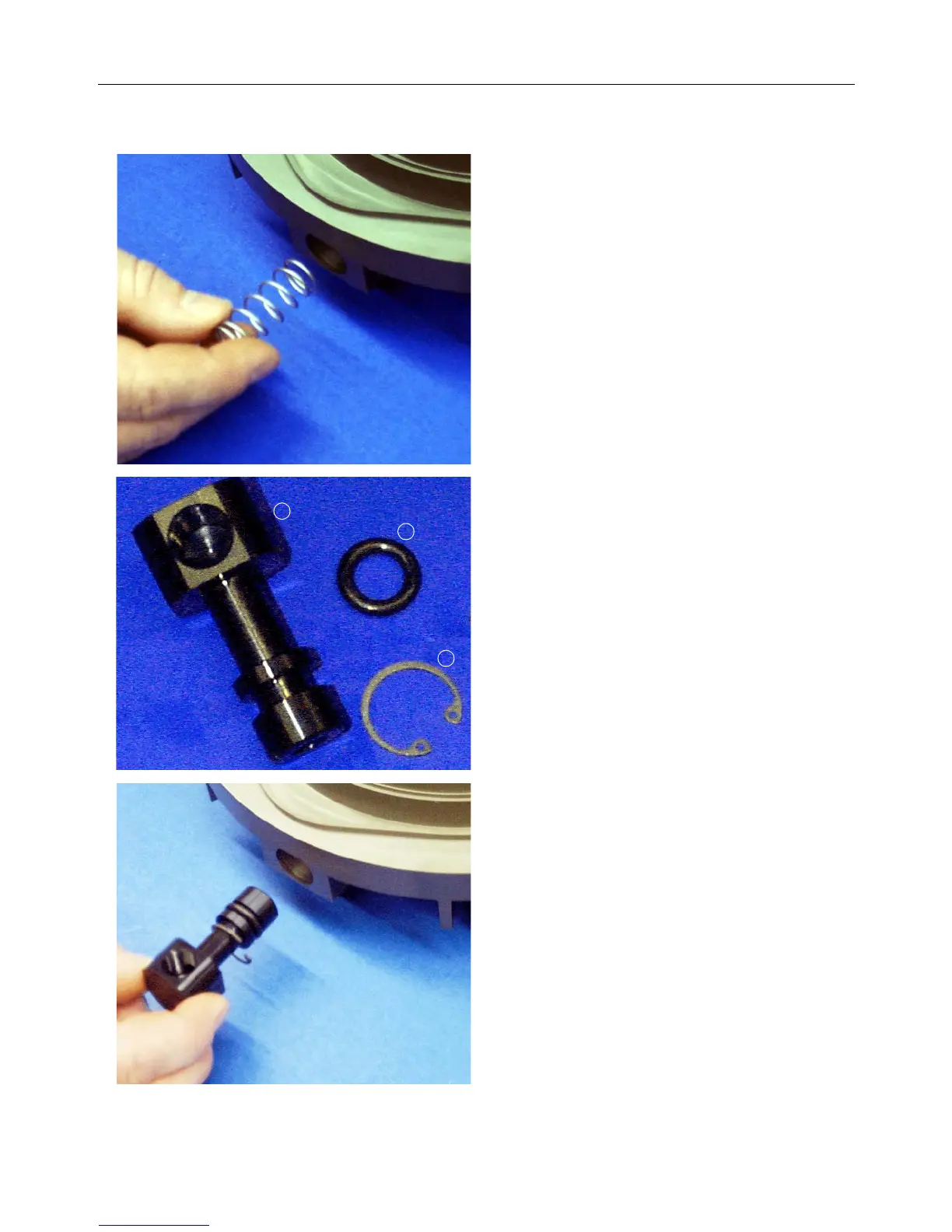

❑ Insert the larger spring into the exhaust
port, pushing against the plunger guide.
PTS06101UNIV and PTS06103UNIV only
Tools required:
❑ Right angle snap ring pliers
❑ Krytox GPL 224 grease
Locate the following parts:
➀ Exhaust fitting
➁ O-ring, 2-207, included in maintenance kit
➂ Snap ring
1. Lightly grease the O-ring, then install it in
the groove on exhaust fitting.
2. Place the snap ring on the exhaust fitting.
The snap ring must be bent slightly to fit
around the exhaust fitting.
Inboard Housing Assembly (continued)
To Next Page
