TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4
3. Push the exhaust fitting into the exhaust port
and against the spring.

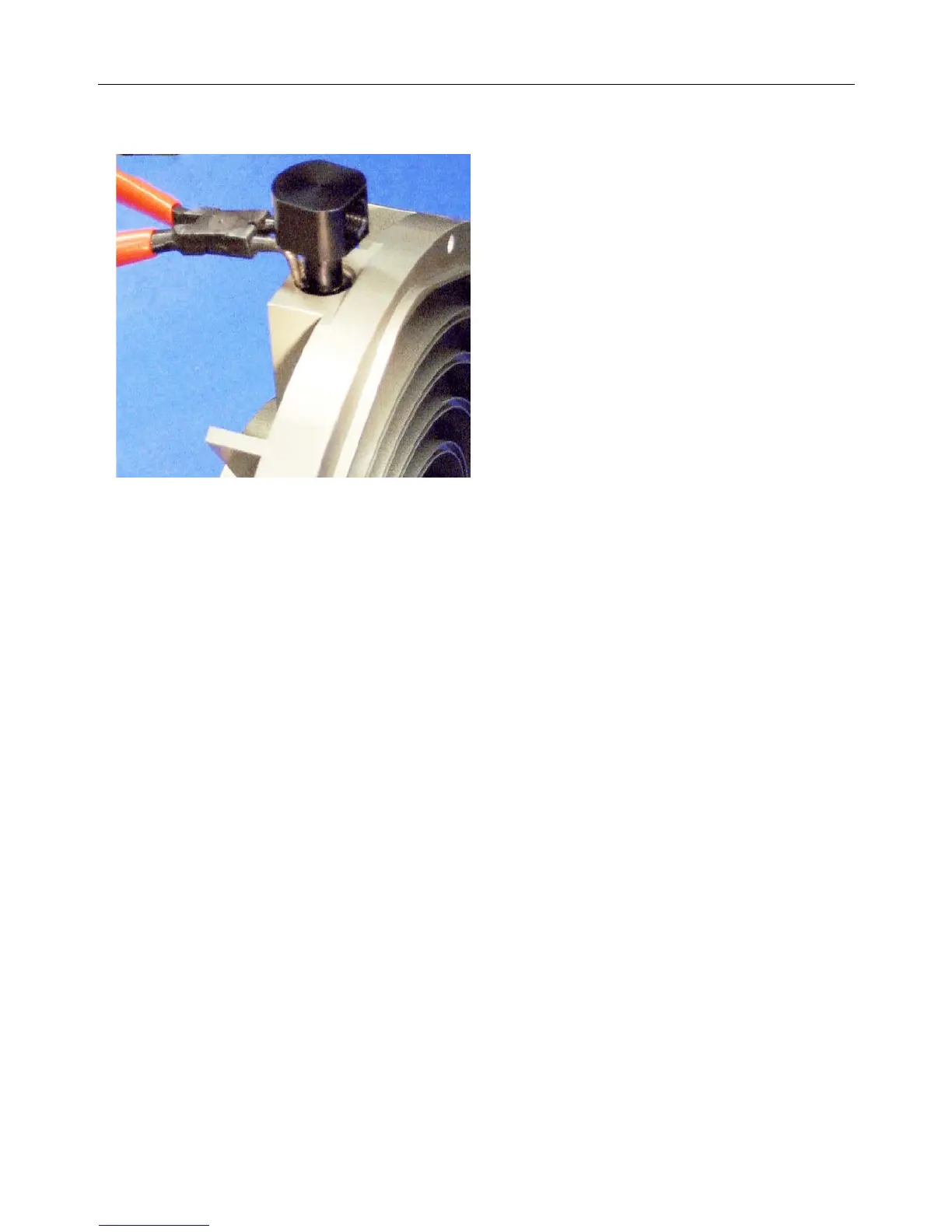

4. Secure it by inserting the snap ring into the
groove in the exhaust port.
Inboard Housing Assembly (continued)
