TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4

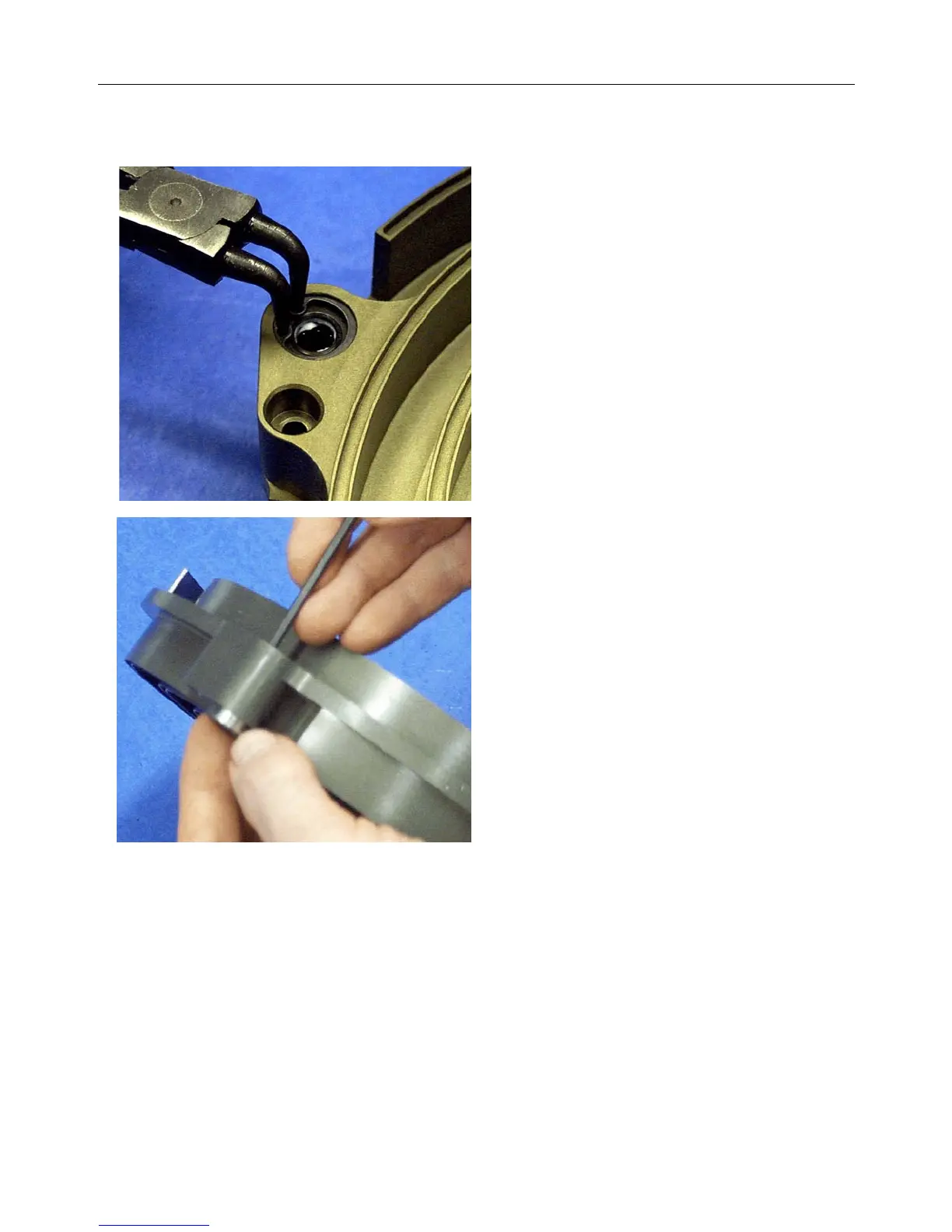

10. Remove the three snap rings that hold the
needle bearings and shaft seals in the
orbiting plate.
11. Push out and discard the three needle
bearings and shaft seals.
TriScroll 600 Disassembly (continued)
