TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1

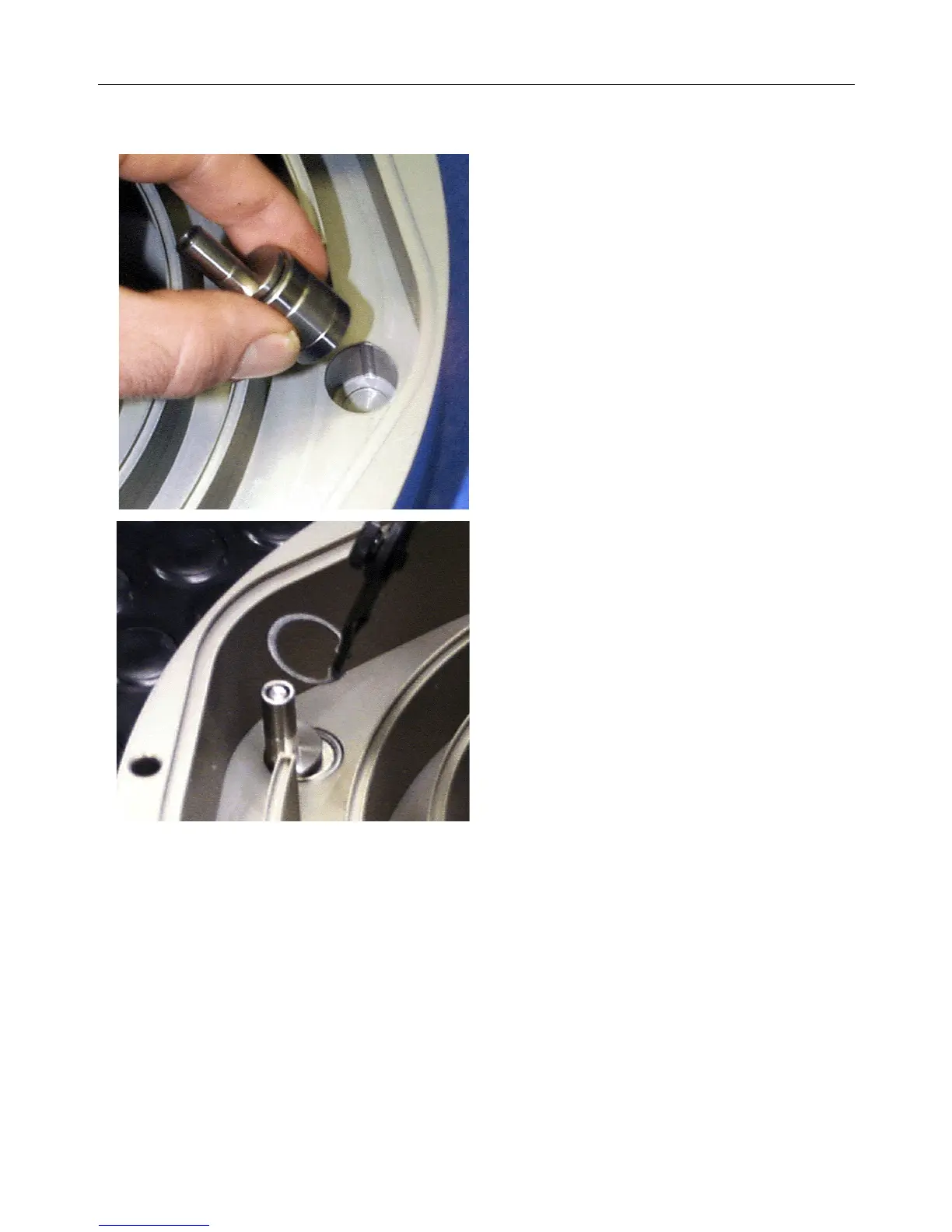

4. Insert a sync crank into each bore.
5. Secure the sync crank by inserting the snap
ring into the bore.
Final Assembly (continued)
