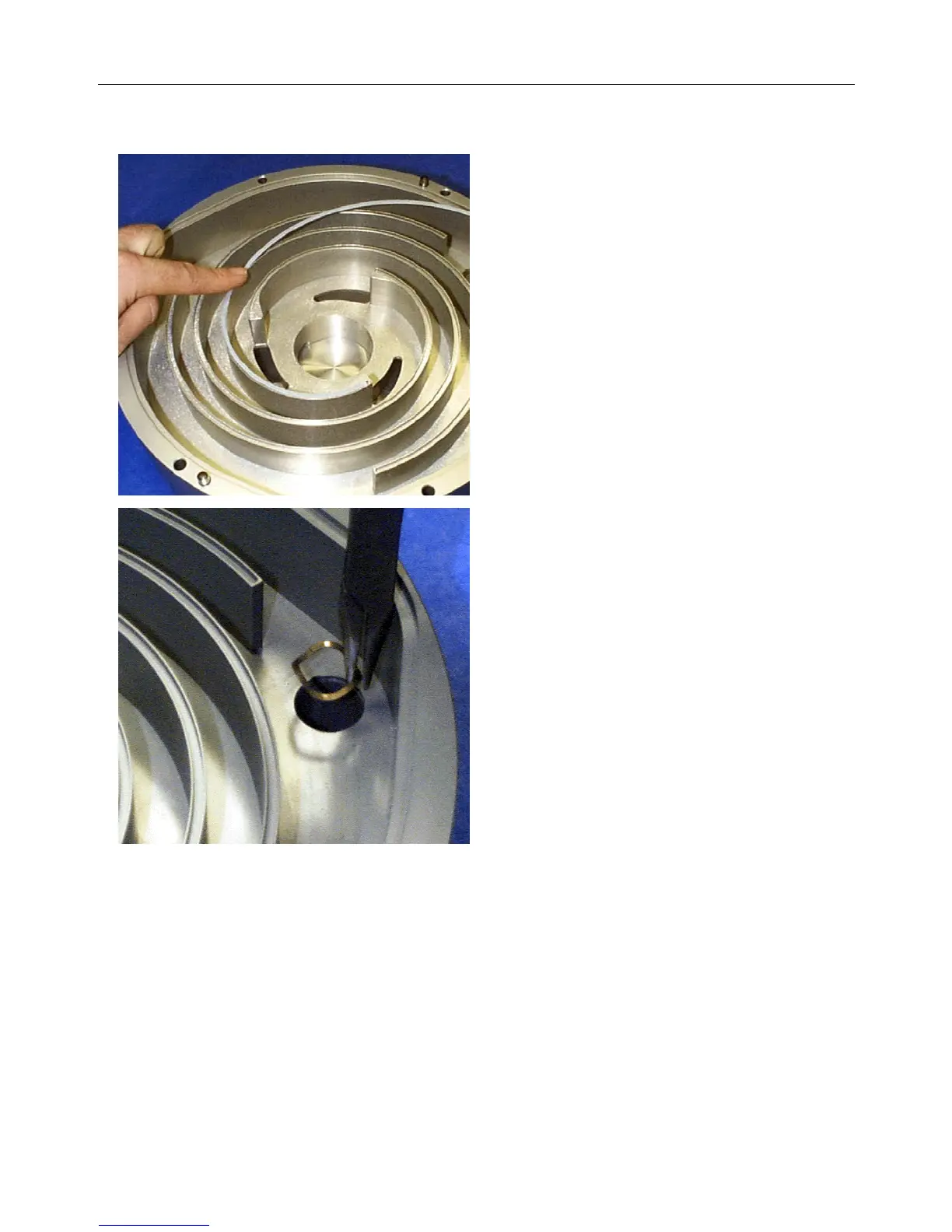

1. Insert the tip seals in the grooves on the
outboard housing.
2. Cut to length at the end of grooves.
3. Insert a wave washer into each sync crank
bore in the outboard housing.
Final Assembly (continued)
