Agilent Technologies TriScroll 600 Series Major Maintenance Manual

18
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

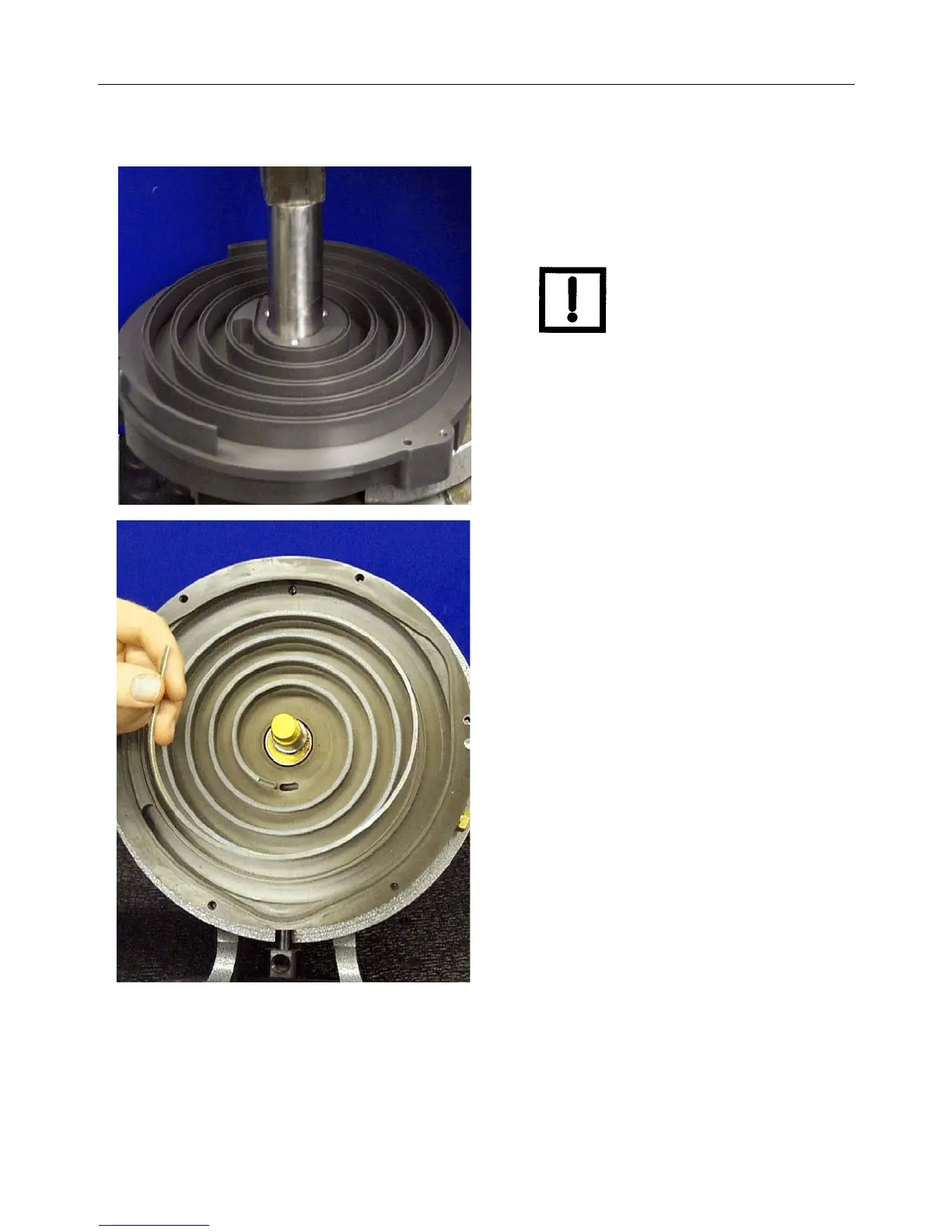

16. Remove and discard the shaft seal from the
orbiting plate.
17. Remove and discard the tip seal from the
inboard housing.
TriScroll 600 Disassembly (continued)
NOTE The shaft seal is held in
place with Loctite
®
.
