Agilent Technologies TriScroll 600 Series Major Maintenance Manual

63
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0
4

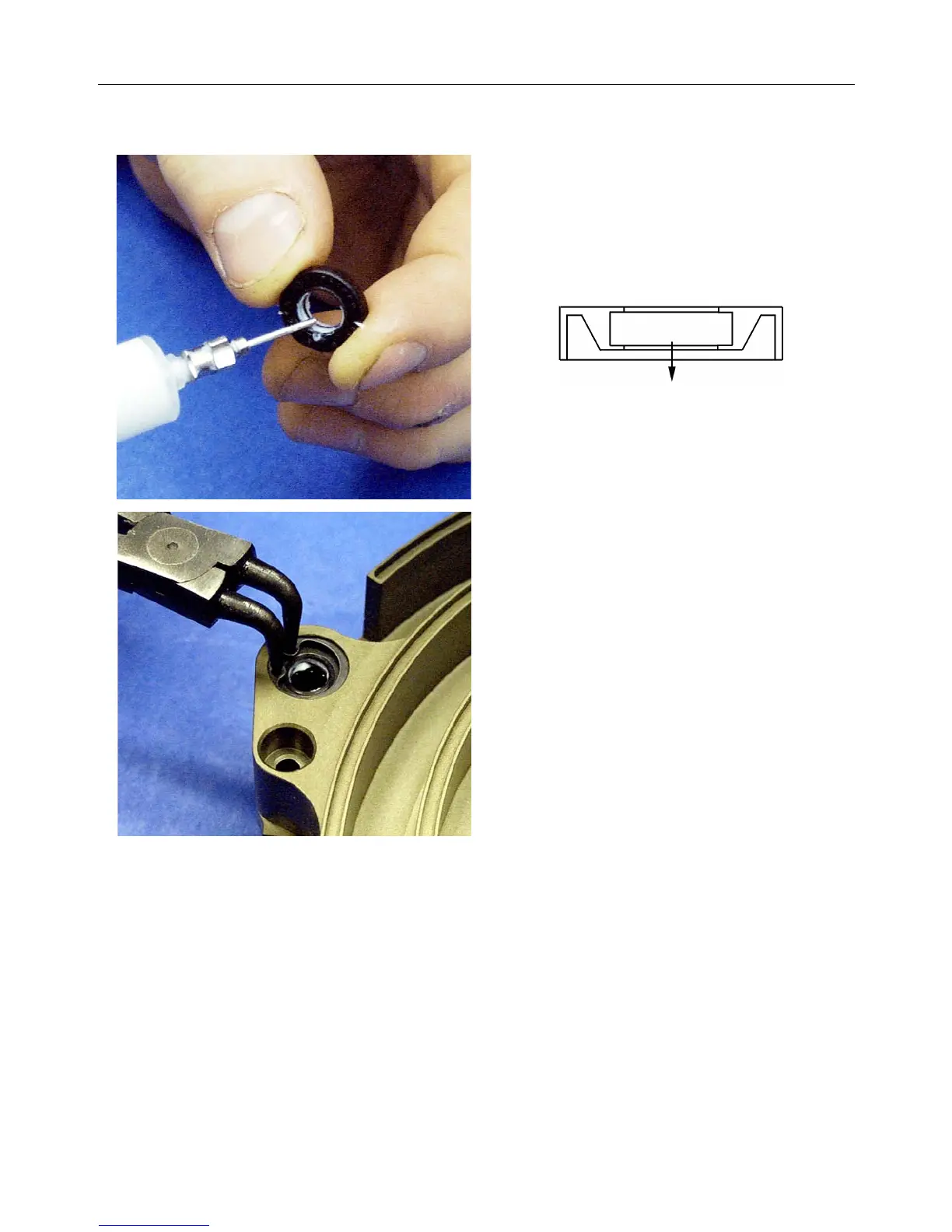

5. Coat the lips of the three shaft seals with
grease.
6. Insert one shaft seal into each bore against
the needle bearing.
7. Secure the sync crank by inserting the snap
ring into the bearing bore groove.
Orbiting Plate Assembly (continued)
Observe Proper Orientation
Toward Bore
