Agilent Technologies TriScroll 600 Series Major Maintenance Manual

60
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

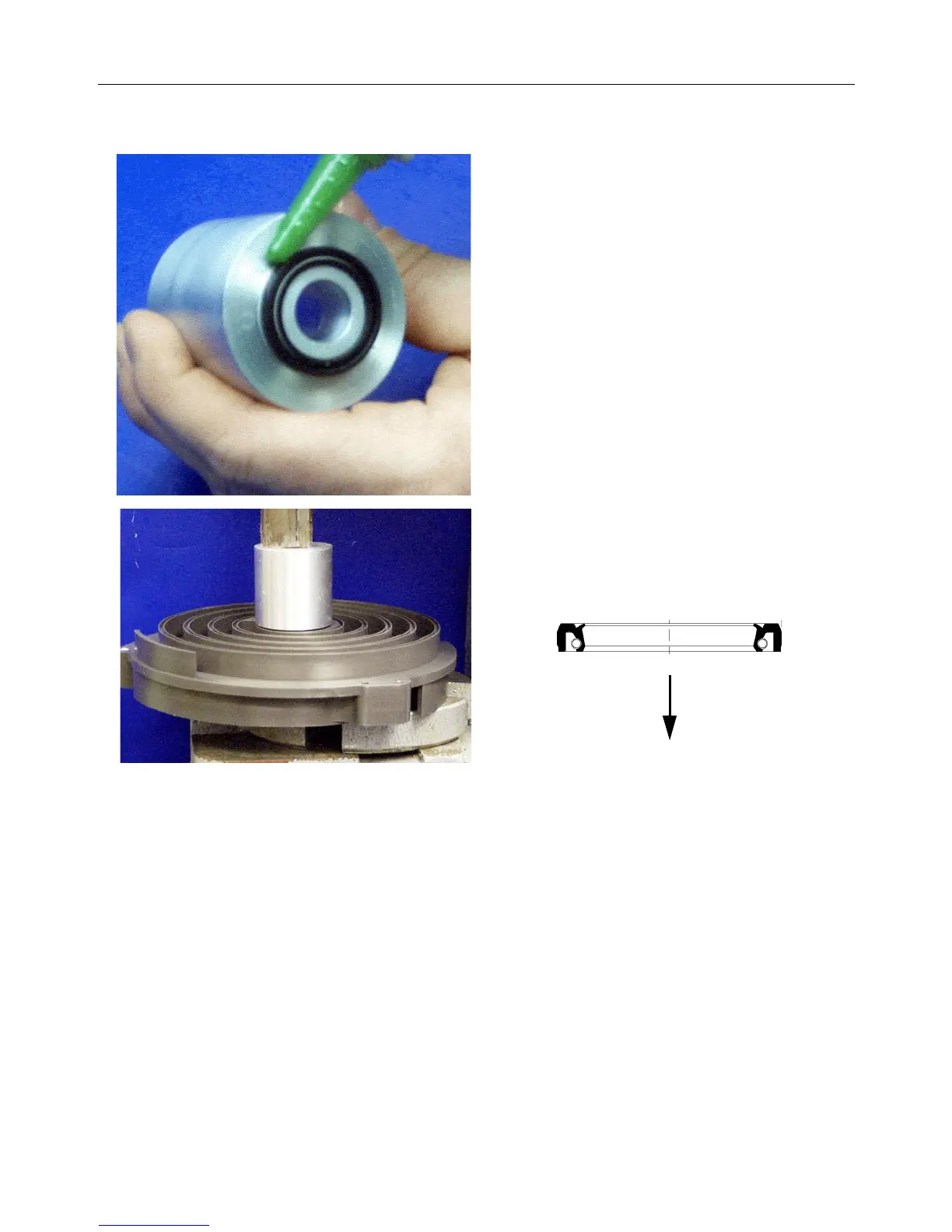

5. Place the shaft seal onto the shaft seal
installation tool.
6. Apply a thin film of Loctite 242 to the outer
edge of the shaft seal.
7. Using the shaft seal installation tool, press
the shaft seal into the orbiting plate.
8. Apply Krytox GPL 224 to the inner diameter
of the seal between the lips.
Orbiting Plate Assembly (continued)
Observe Proper Orientation
Toward Bore
