84
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1

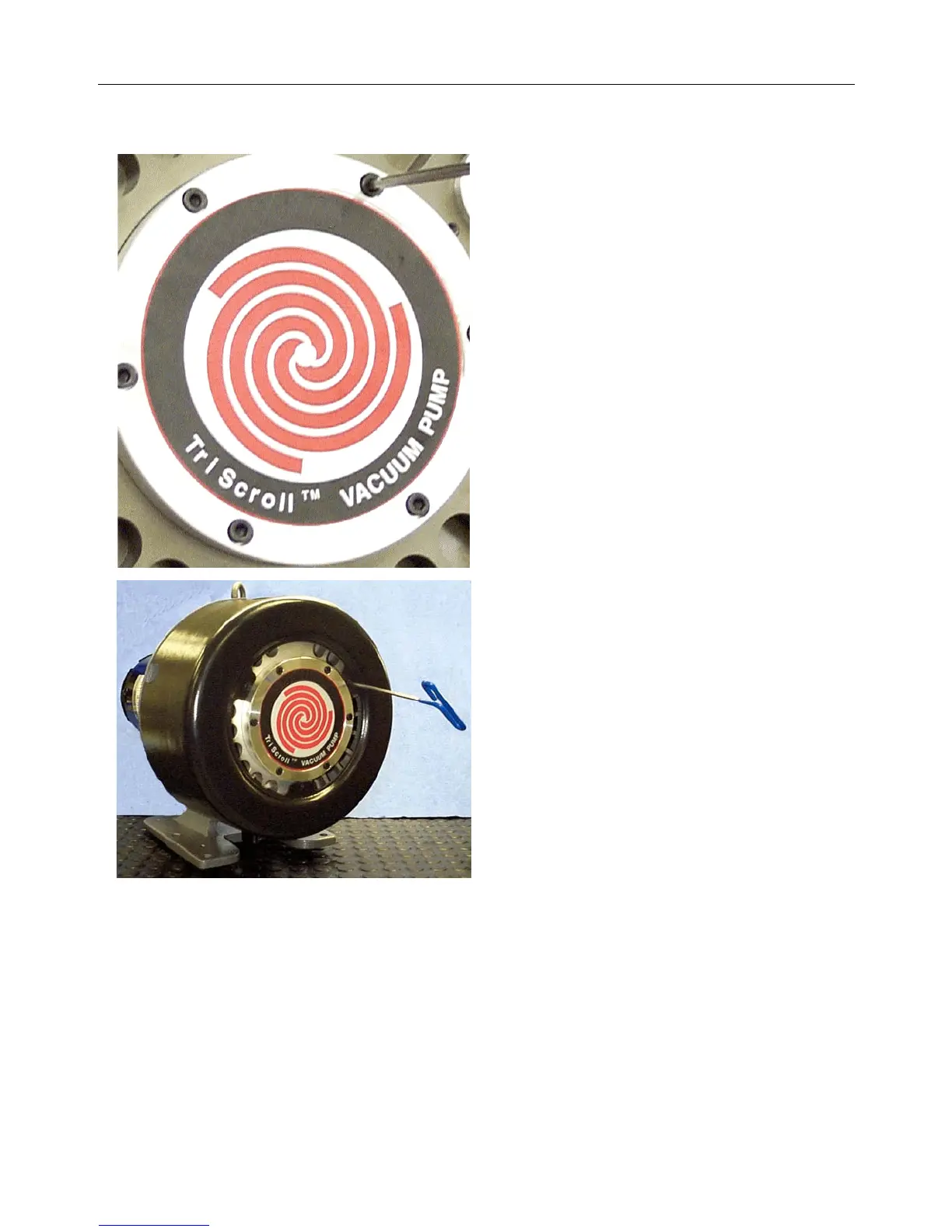

2. Secure the outboard cover to the outboard
housing with the six M5x22 screws.
3. Install the cowling over the pump module.
4. Secure it with the three M5x16 screws.
Final Assembly (continued)
