Agilent Technologies TriScroll 600 Series Major Maintenance Manual

85
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1
Tools required:
❑ Snap ring pliers
❑ Allen wrench
❑ Krytox GPL 224 grease

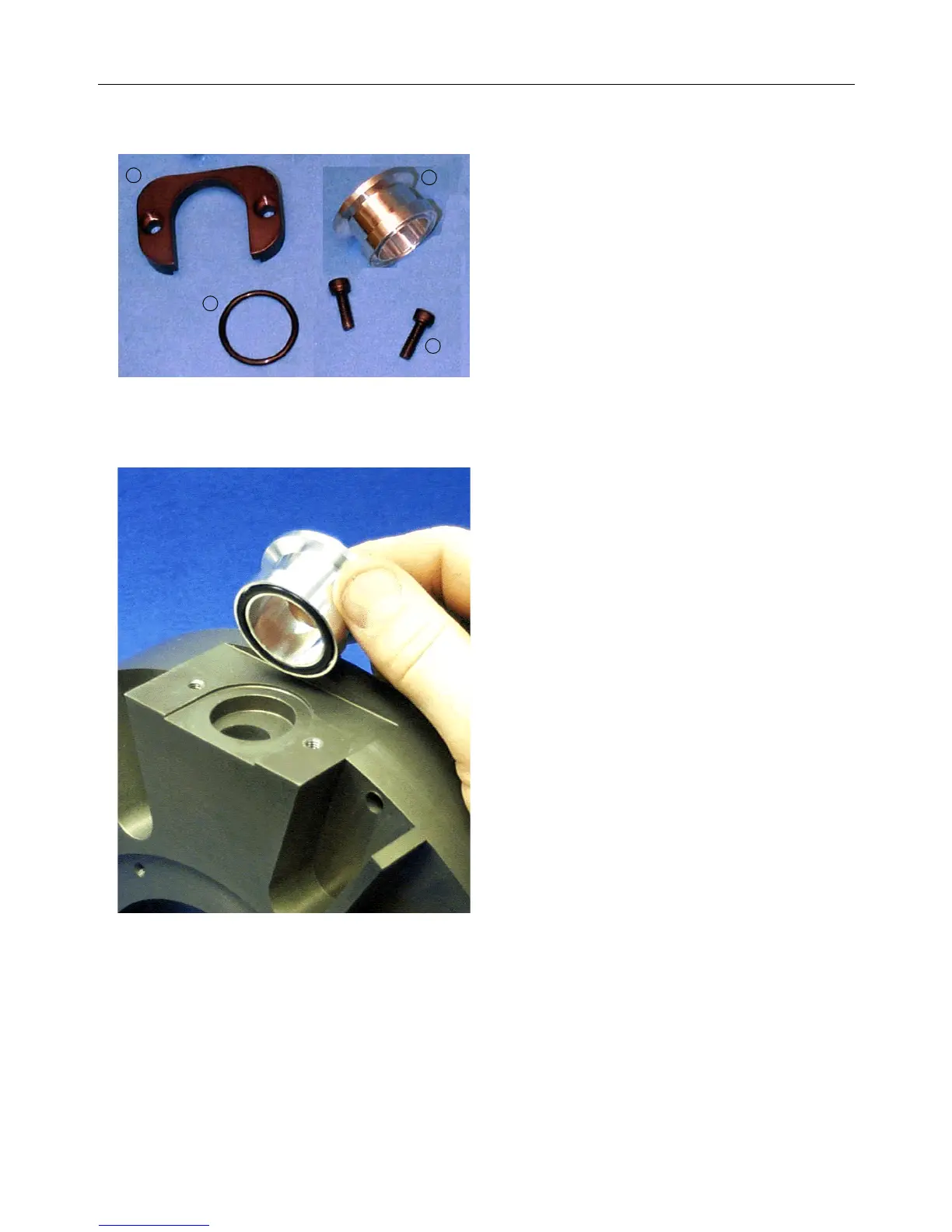

Locate the following items shown in the photo
to the left:
➀ Intake fitting
➁ M5x16 screws (2)
➂ O-ring, 2-121, included in maintenance kit
➃ Intake clamp
Intake screen (not shown)
Snap ring (not shown)
1. Lightly grease the O-ring and insert it in the
groove on the underside of the intake fitting.
Final Assembly (continued)
1
2
3
4
