Agilent Technologies TriScroll 600 Series Major Maintenance Manual

40
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 2 9 / 0 4

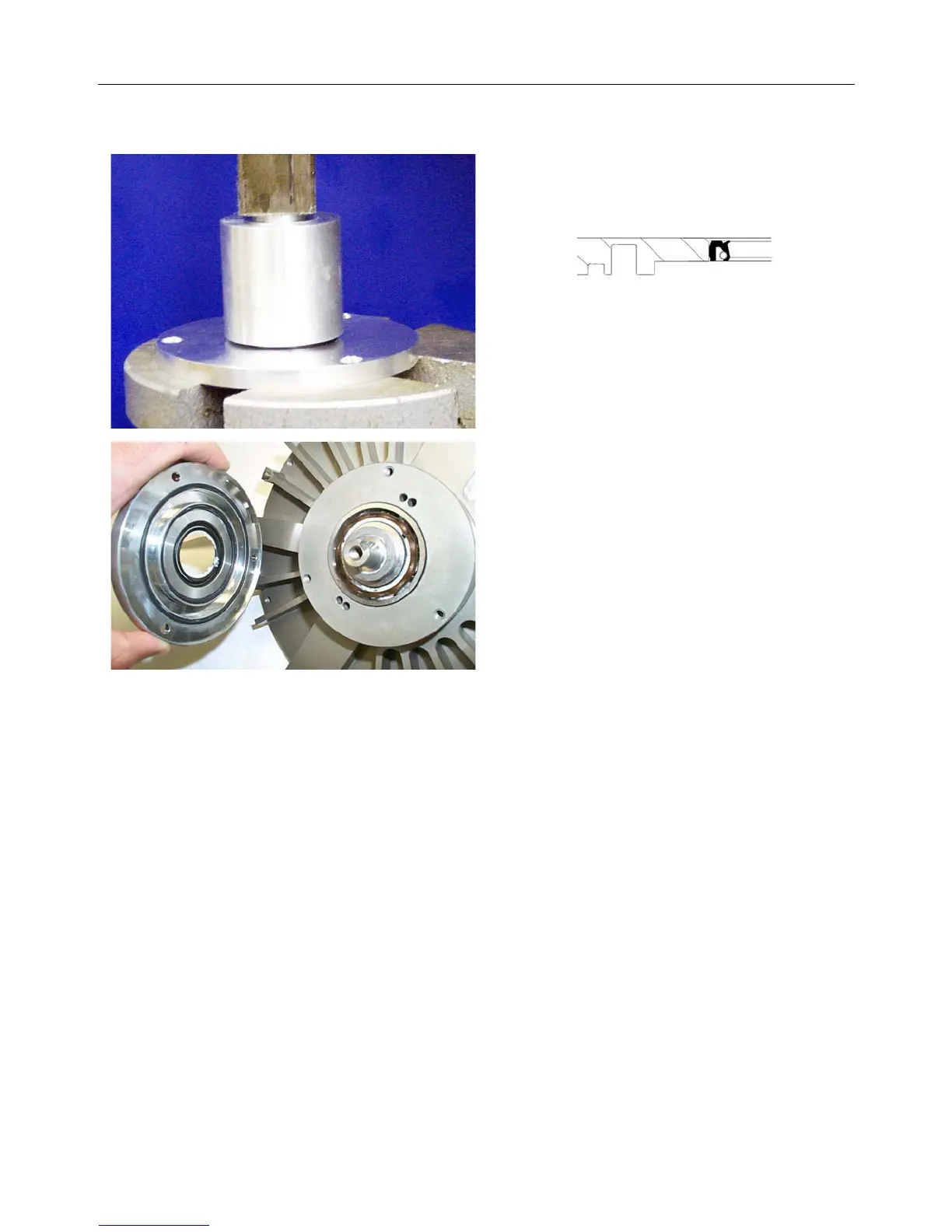

2. Press the shaft seal into the seal housing.
3. Using Krytox GPL 224, grease the inner
diameter of the shaft seal between lips.
4. Remove the screw, washer and bearing
pre-load tool from crankshaft.
5. Lightly grease the 2-152 O-ring and insert it
into the outer groove on the seal housing.
6. Lightly grease the 2-140 O-ring and insert it
into the middle groove on the seal housing.
Inboard Housing Assembly (continued)
Observe Proper Orientation
