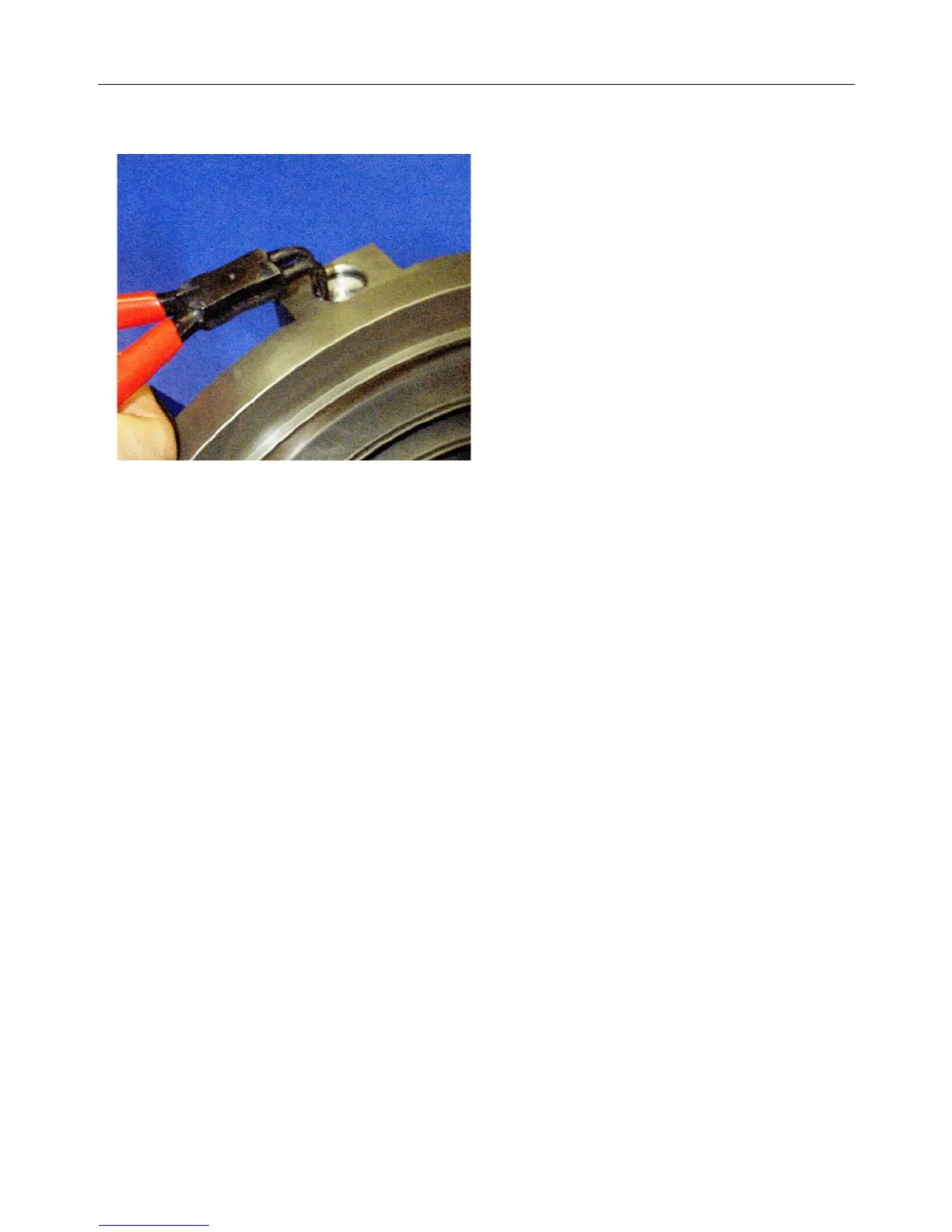

19. Secure the check valve plug by inserting the
snap ring into the bypass port groove.
Inboard Housing Assembly (continued)
