Agilent Technologies TriScroll 600 Series Major Maintenance Manual

70
TriScroll 600 Dry Scroll Vacuum Pump
D R A F T 4 / 7 / 1 1

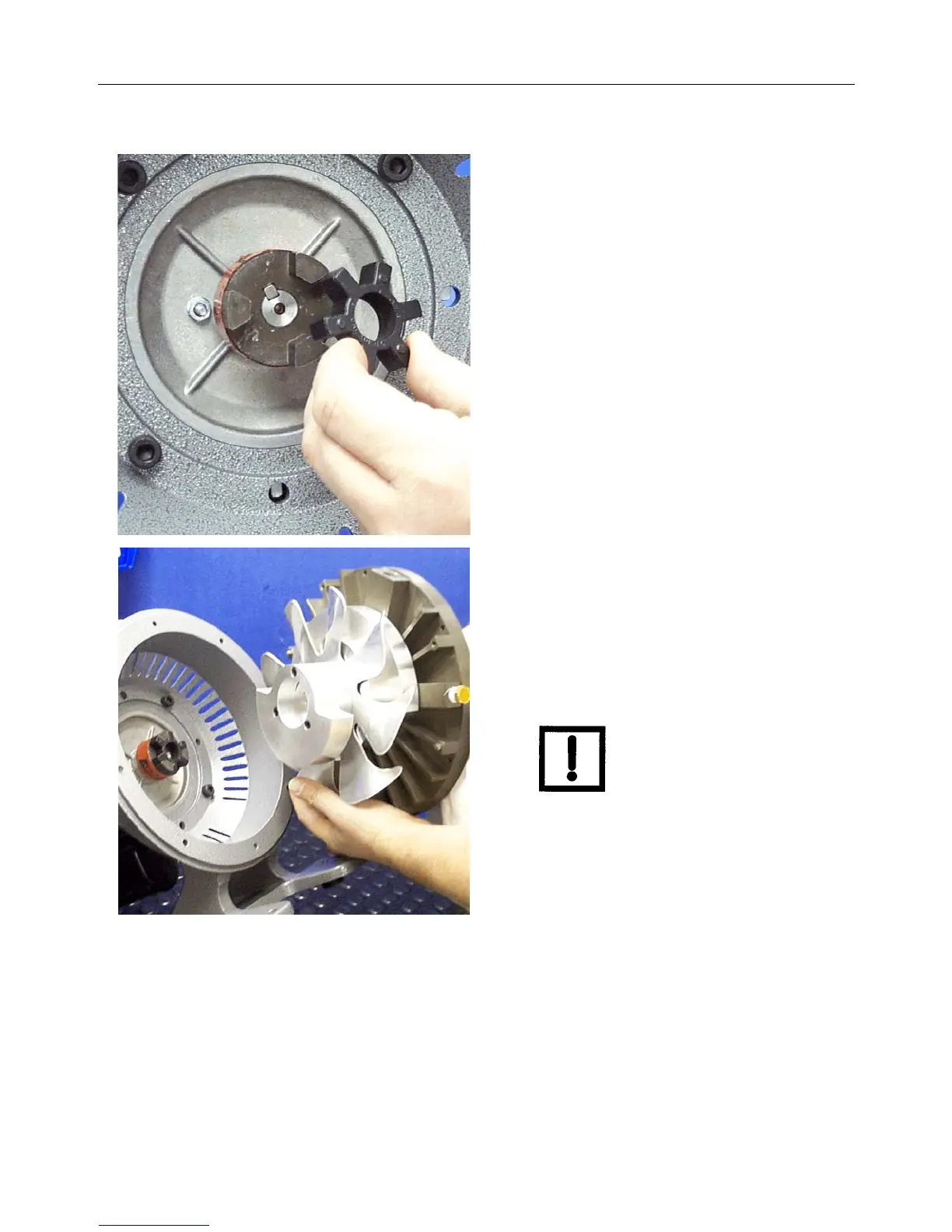

1. Insert the spider into the motor coupling.
2. Install the inboard assembly into the
TriScroll frame, aligning the fingers on the
fan assembly with the fingers on the
coupling.
Ensure that the dowel pins fit properly on
the mating holes in frame.
Final Assembly (continued)
NOTE Exhaust fitting located in
the downward position.
