Agilent Vapor Generation Accessory VGA 77 and VGA 77P User’s Guide 35

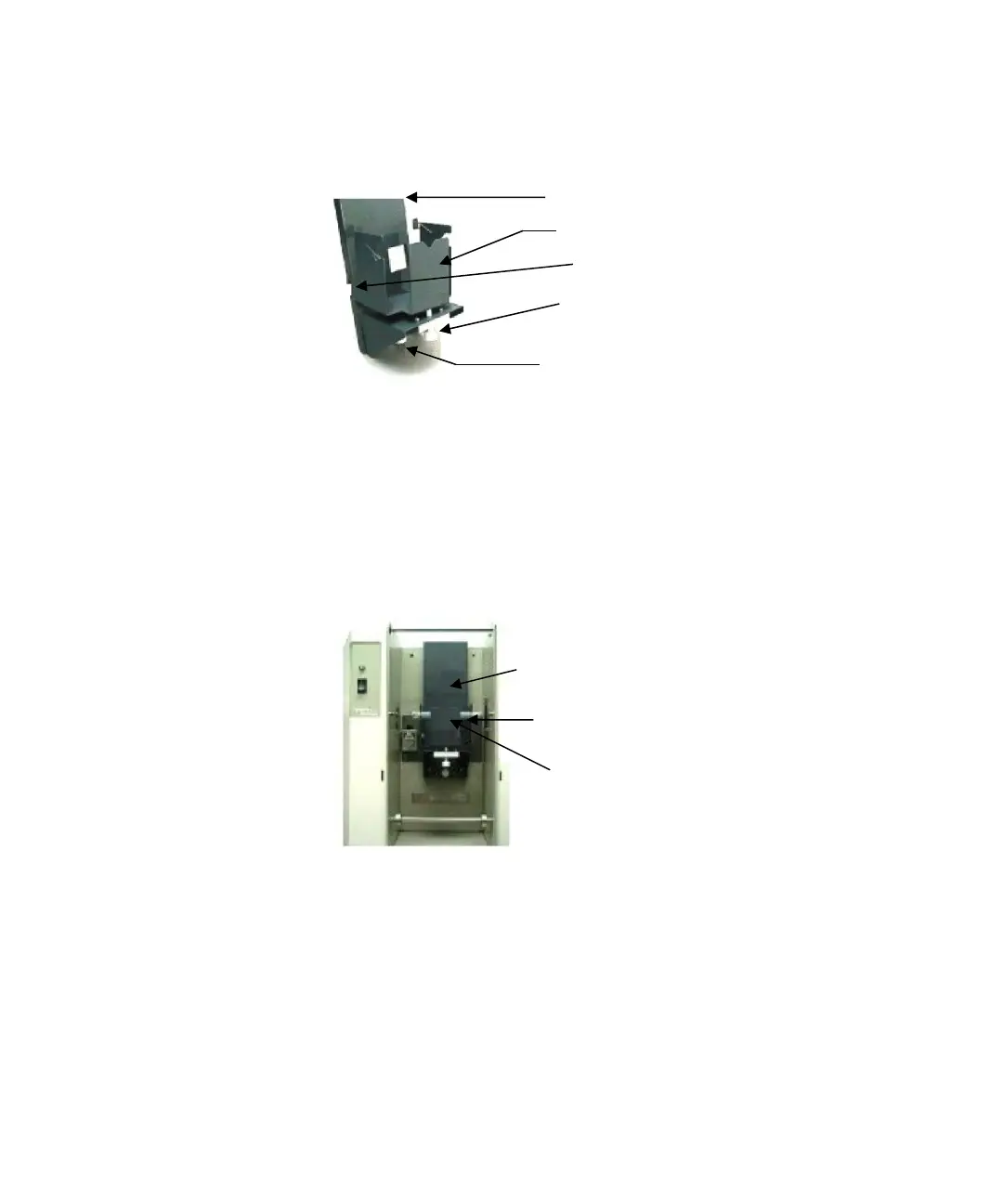

Figure 13. Adapter and standard cell holder
3 Attach the Standard Cell Holder to the adapter outside the
sample compartment. Lower the hooks of the Standard Cell
Holder onto the pivot points of the adapter.
4 Pass the adapter fitted with the Standard Cell Holder under the
crossbar of the sample compartment.
5 Hook the adapter on the top rear edge of the sample
compartment.
Figure 14. Adapter, standard cell holder and cell inside sample compartment
Cell Holder and Adapter Removal
The standard cell holder must be removed to allow installation of the
ETC 60 Workhead Mk 2.
Ada
p
ter
Standard Cell Holder
Pivot
p
oint
Vertical ad
j
ustment
Horizontal ad
j
ustment
Ada
p
ter
Cell
Standard Cell Holder
