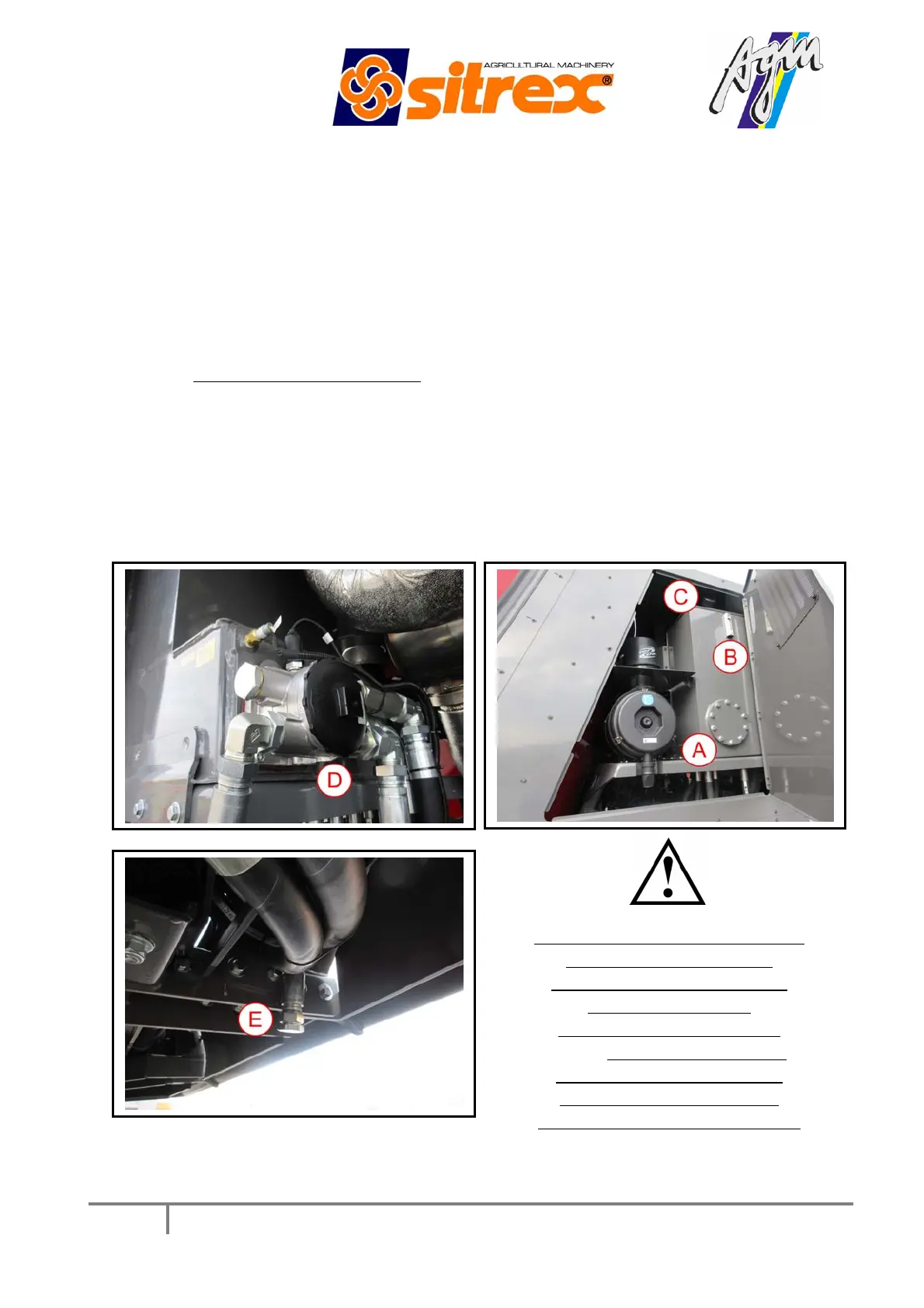

4.3.7 Replacement of hydraulic oil and tank filters

 Turn off the engine, open the rear left door and remove the filler cap (“C").

 Place a container with a capacity of at least 180 liters underneath the drain plug

(“E”).

 Unscrew the plug and let all the contents drain out (“E”).

 Remove the inspection flange (A"), unscrew the three immersed filters inside the tank.

If you note impurities inside the tank, clean the bottom and walls with some diesel

fuel. DO NOT USE SOLVENTS!

 Clean the plug (“E”) and screw back in place.

 Put the three filters back in place, screwing them in by hand, replace the flange o-ring

seal, fastening the screws firmly.

 Unscrew the filter cap ("D") and remove the cartridge. Clean hands thoroughly and

cut the two ends of the bag of the new cartridge.

 Insert the cartridge inside the filter body at the same time removing the bag.

 Replace the filter cover.

BEFORE REFILLING THE TANK

MAKE SURE THAT ALL

OPENINGS ARE SECURELY

FASTENED IN THE

APPROPRIATE MANNER.

BEFORE YOU BEGIN

REPLACING, ALLOW THE

MACHINE TO COOL TO

AVOID SCALDS AND BURNS.
