4.3.13 Cutter loading belt check and tension adjustment

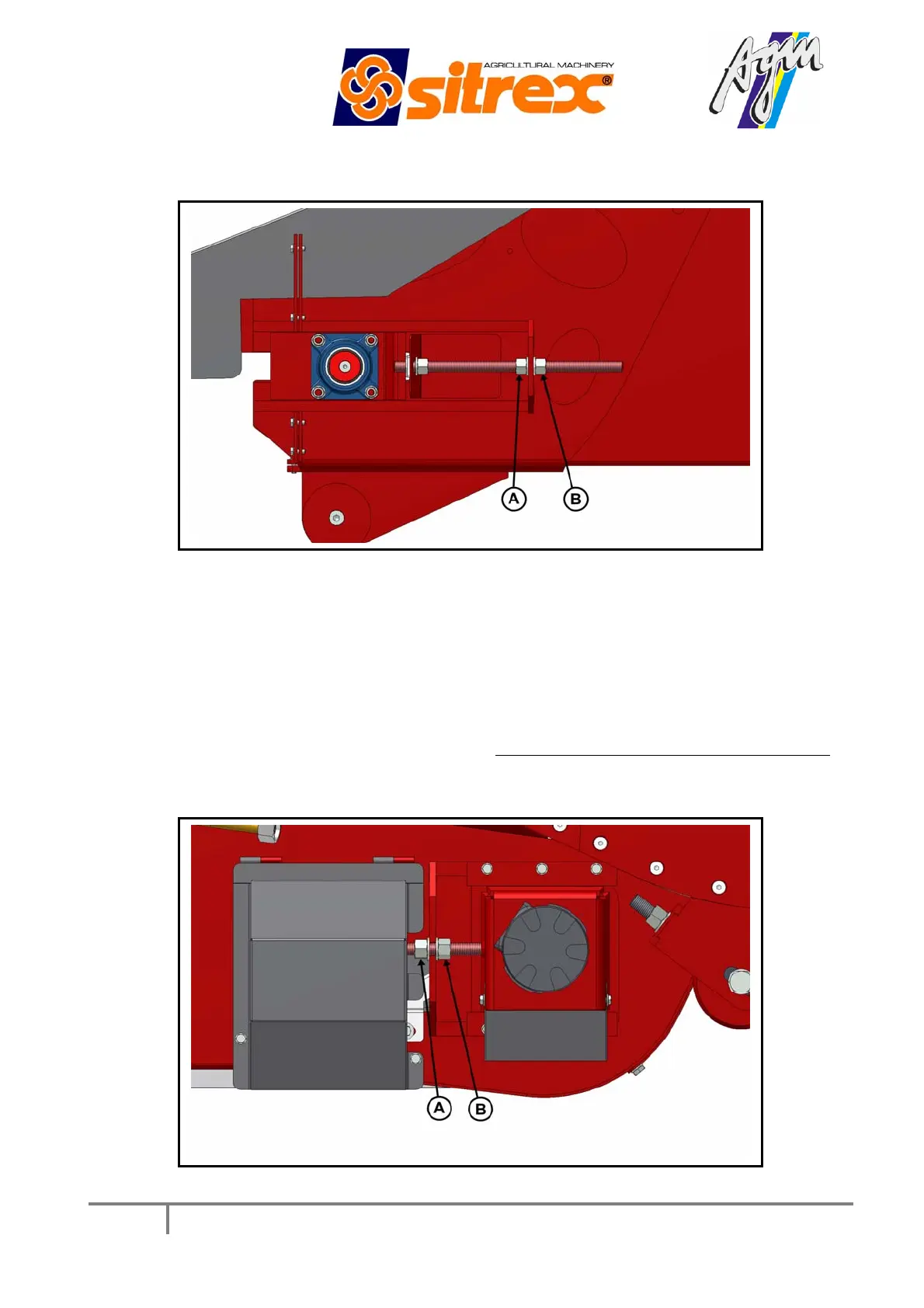

FIG.1
TENSION ADJUSTMENT -FIG.1-
The belt tensioners are located on the belt discharge shaft supports, near the cutter arm
upper mounts.
 Lower the cutter arm and turn off the engine.
 Loosen the locknuts “A” on both tensioners.
 Tighten the nuts “B” of the two regulators WITH THE SAME NUMBER OF TURNS
until the belt is tensioned.
 Tighten the locknuts “A”.
FIG.2
