CENTERING ADJUSTMENT -FIG.2-

If you notice that the belt moves to one side, it can be re-centered by means of the regulator

screw on the belt motor mount located next to the cutter on the right side.

 Lower the cutter arm and turn off the motor.

 Loosen locknut “B”.

 If you notice that the belt shifts toward the left, tighten nut “A”; if it shifts toward the

right, loosen it.

 Tighten locknut “B”

4.3.14 Unloading chain check and tension adjustment

When the unloading belt or chain are loose, in which case the chain makes excessive noise

or the rubber belt slips, it is necessary to put them under the proper tension to avoid

damaging them.

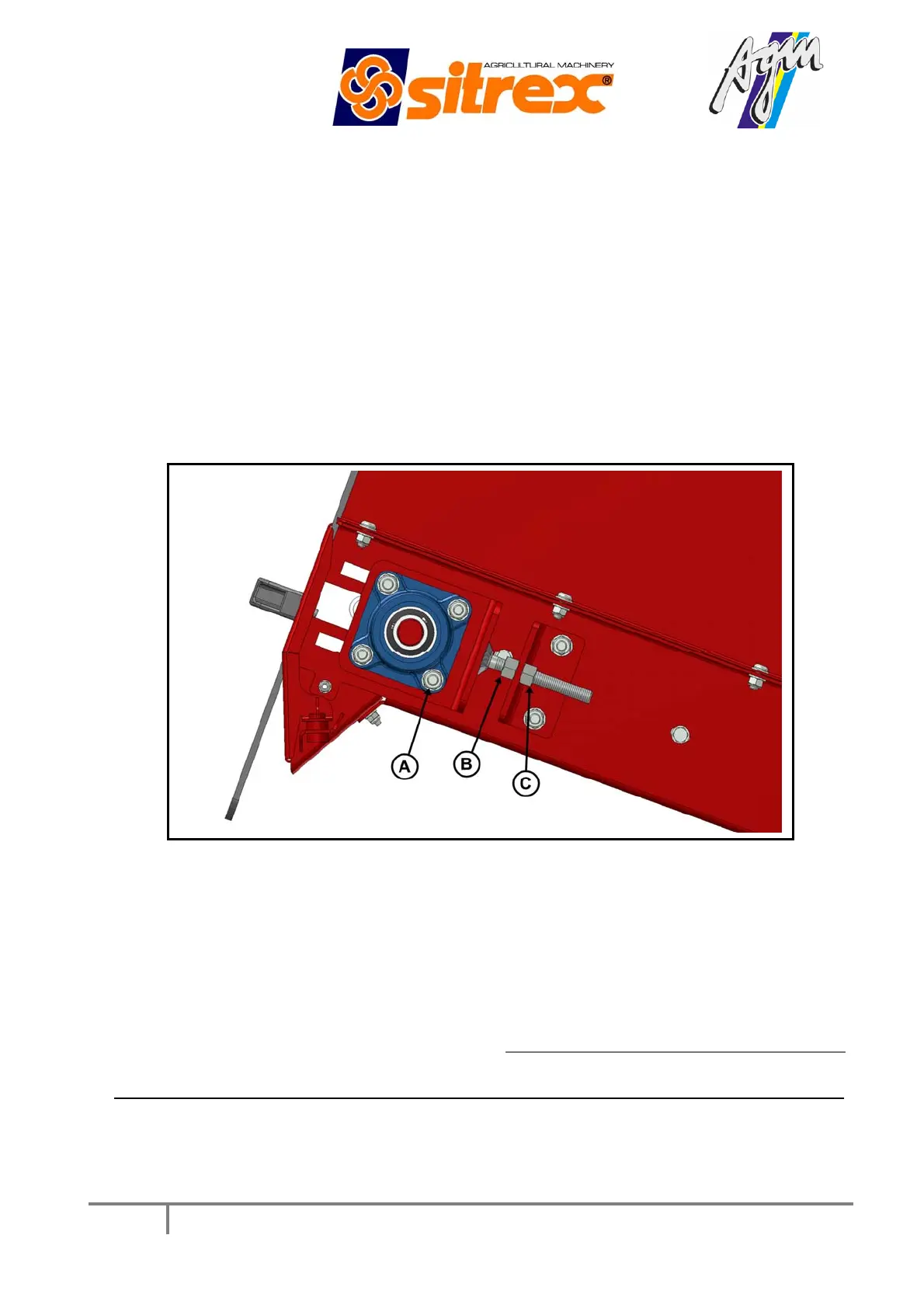

Adjust the nuts of the bearings and the tensioners:

 Loosen the nuts (A) of the two bearings just enough to allow the two regulators to

slide slightly.

 Loosen the nuts (B) of the two regulators.

 Tighten the nuts (C) of the two regulators WITH THE SAME NUMBER OF TURNS

until the chain or belt is tensioned.

BE CAREFUL to move the two regulators equally to avoid having the shaft work crookedly.

 Tighten the nuts (B) of the two regulators.

 Tighten the nuts (A) of the two bearings.
