agria Two-Wheel Tractor 3400; 3400 KL 43
3. Devices and Operating Elements
I
It is recommended to use twin wheels, wheel centres or strake wheels for
mowing areas on extremely steep slopes.

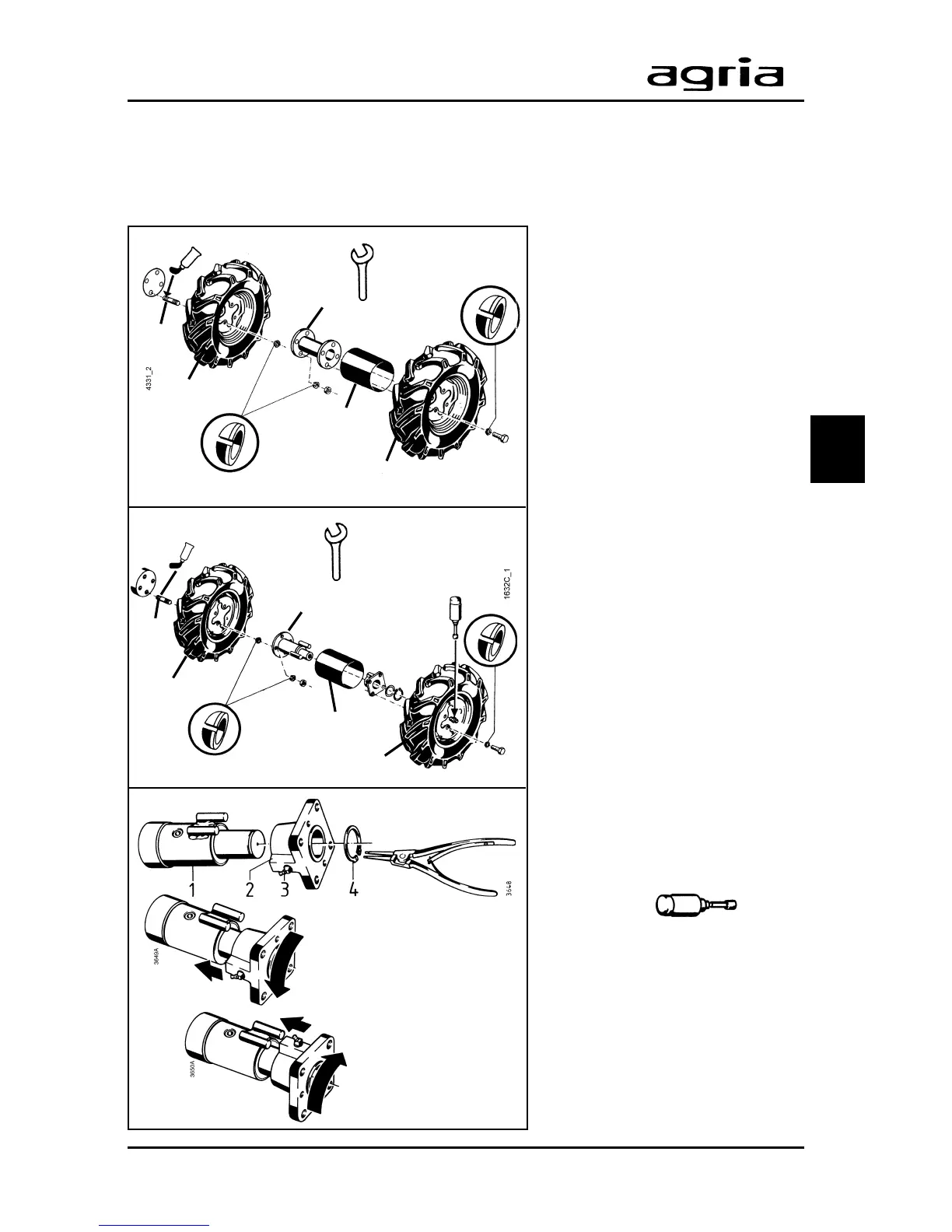

Twin Wheels
It is necessary to fit between the individual wheels:
Wheel-track extension for
steering brake clutch
machines
Item 5616011
Mounting -
Please note with regard to:
Use wheel attachment bolts
version B (double end stud).
Fit ball spring rings between
wheel bowl and wheel-track ex-
tension (centring).
Differential Hubs for
differential version
machine
Item 5519011
Mounting -
Please note with regard to:
Use wheel attachment bolts
version B (double end stud).
Fit ball spring rings between
wheel bowl and differential hub
(centring).
Lubrication
Use a grease gun to lubricate the
wheel flange nipple (3) (with Bio-
grease) after every 100 operat-
ing hours or after cleaning the
machine with a pressure washer.
Adjustment
The differential hubs are factory-
set to differential effect, mount-
ing of rigid position see fig.
3
Loctite 270
5616 011
5519 011
100 Nm
Differential position
Rigid position
Ball spring ring
Ball spring ring
100 Nm
Loctite 270
66
66
6 50 h
