44 agria Two-Wheel Tractor 3400; 3400 KL
Strake WheeI
Item 5417 511 for drive-wheels 4.00-8
Item 5517 521 for drive wheels 5.00-10
Differential Version
Mounting -

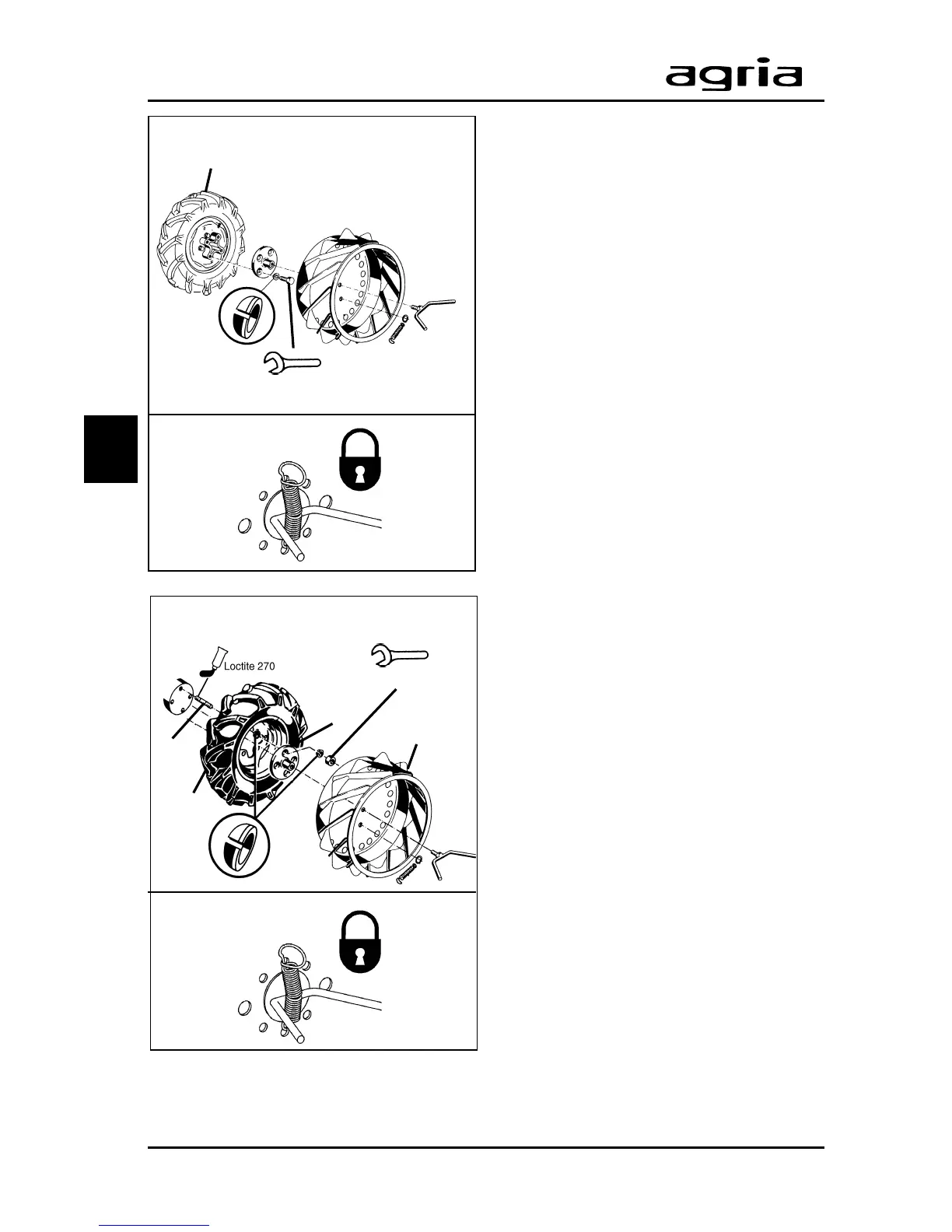

Please note with regard to:
Fit drive-wheels on inner part of hub
adapters.
Fit strake wheel flanges to outer part
of hub adapters.
Make sure that the strake wheel
webs face the machine in travel direc-
tion (see fig.).
Attach the tension spring to secure
the tommy screw.
Steering Brake Clutch Version
Mounting -
Please note with regard to:
Use wheel attachment bolts version
B (double end stud).
Fit ball spring rings between drive
wheel and flange.
Ensure the strake wheel webs face
the machine in travel direction (see fig.).
Attach the tension spring (9) to se-
cure the tommy screw.
3. Devices and Operating Elements
Differential Version
Steering Brake Clutch
Version
3
100 Nm
100 Nm
