Dismantling:
To dismantle the mounted implement, put down the mounted implement paying attention that the mounted
implement cannot tilt or slip after it has been dismantled. First dismantle the implement drive shaft. Dis-
connect the upper link from the implement. Open the catch hooks. Lower the lower link so that you can
move the machine to the side.
Notes:
Do not use any damaged or even defective mounted implements. Worn mounted implements or
mounted implements that no longer move freely can increase wear and operating temperature of the base
machine or the operating temperature of the machine or can have a negative effect on the rechargeable
battery runtime.
Only use the drive shafts delivered for Agria mounted implements.

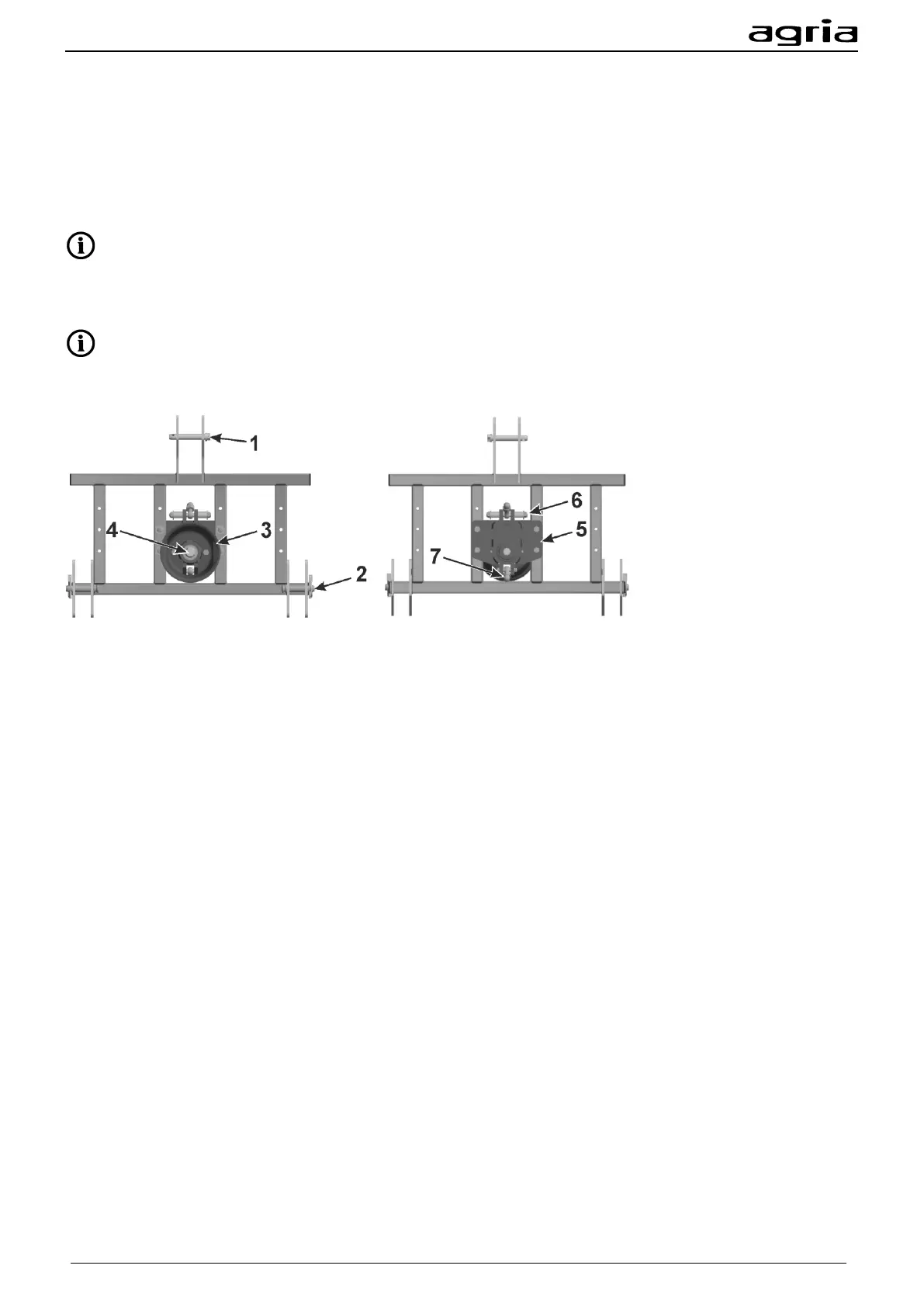

3.6.1 Adapter for agria mounted implements
1. Connection upper link
2. Connection lower link
3. Protection cap
4. PTO shaft (direction of base machine)
5. Agria flange (direction of mounted implement)
6. Agria flange attachment for catch hook with cap nut (AF 24)
7. Agria flange fixing screw with cap nut (AF 24)
With the adapter for agria mounted implements (agria art.-no. 9755 111) you can operate agria mounted
implements with your agria 9700e.
Attach the adapter like a mounted implement, see page 22.
