3 Devices and Operating Elements
24
Remote-controlled All-electric Tool Carrier agria 9700e
3.6.2 Mounted implements und accessories for mounted implements

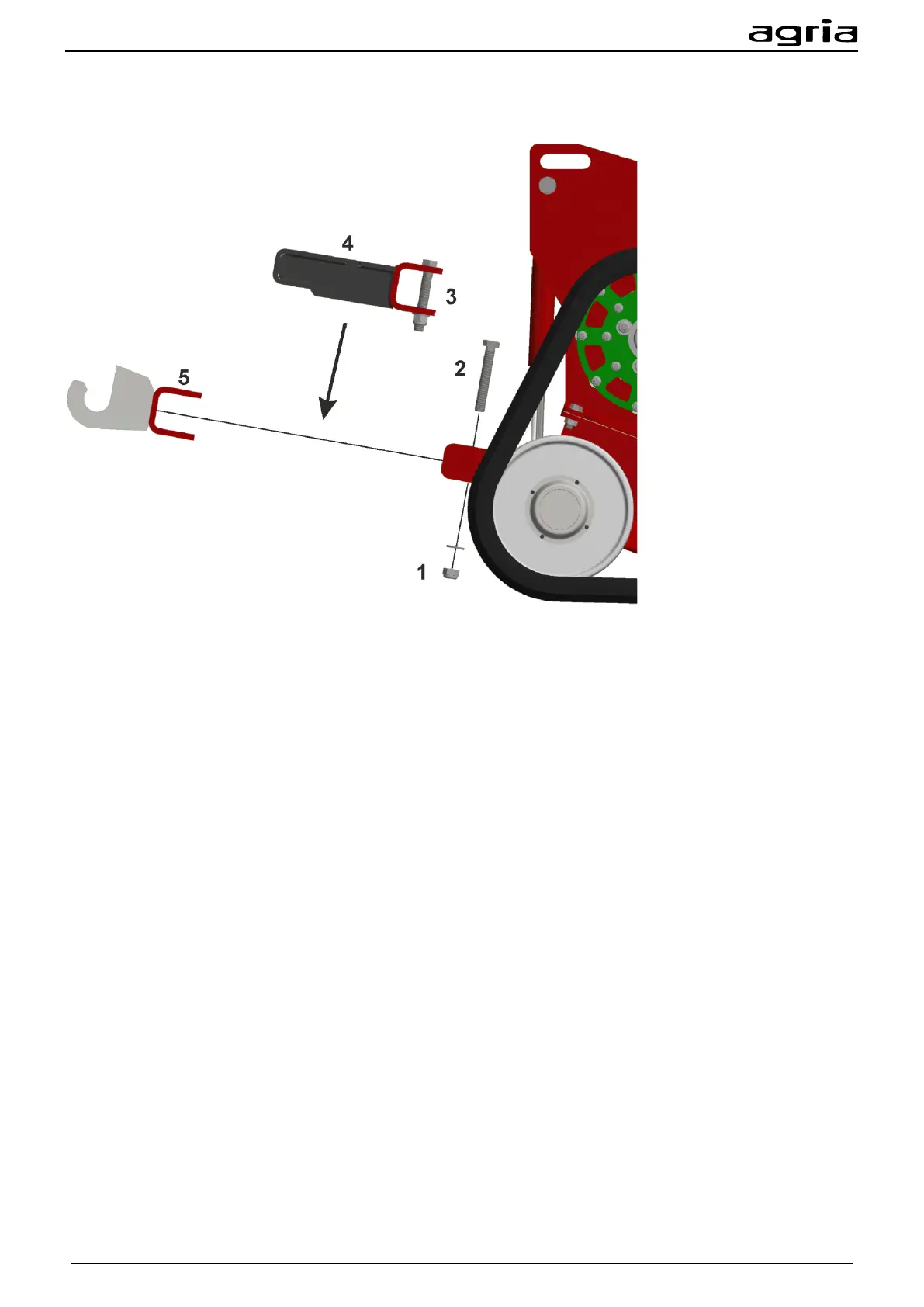

Mount the catch hook extension
You can extend the lower links of the 9700e. Use the catch hook extensions (agria art.-no. 9740 131).
1. Open the nut (1) (AF24).
2. Remove the screw (2).
3. Remove the catch hooks (5).
4. Open the nut of the screw on the extensions (3) (AF24).
5. Insert the extension (4) instead of the catch hooks. Mount the catch hooks on the extensions.
6. Fasten the extensions and the catch hooks with the screws provided.
