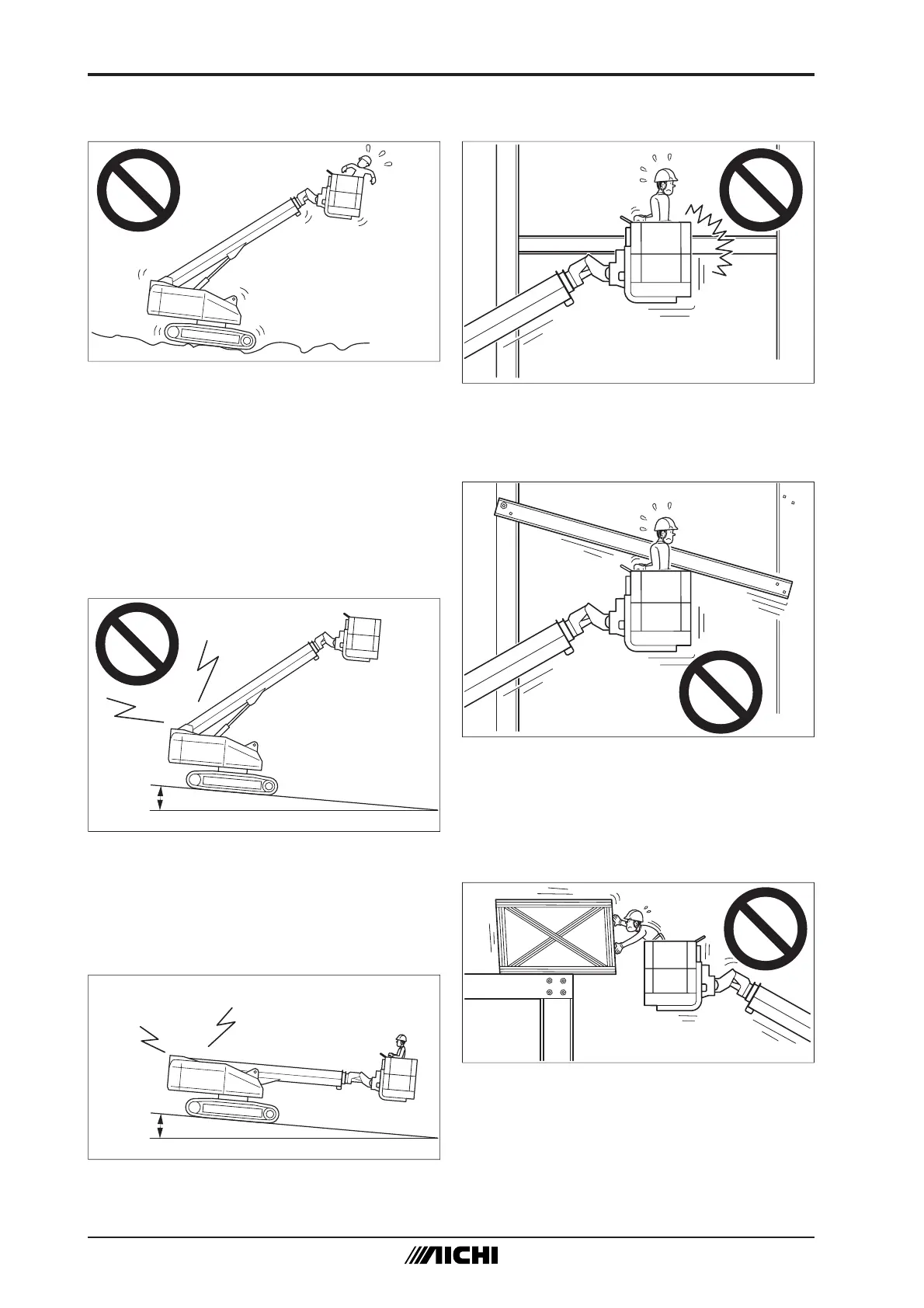

• Donotelevatetheplatformonsoftor
unevenground.
M085E400
fig.1‒4
• Donotelevatetheplatformonaslope.
• Donotusethemachineonaslope
morethanthemaximumallowabletilt
angle.Whenthemachinetiltmorethan
themaximumallowabletiltangle,the
tiltalarmbuzzersoundsandthetilt
warninglightgoeson.Nevercontinue
workingafteralarmsounds.
 Maximumallowabletiltangle:5
°
Beep!
M085E500
More
than
max.allowabletiltangle
fig.1‒5
• Iftravelingonaslopemorethan
maximumallowabletiltangleis
unavoidable,makesuretofullyretract
theboomandlowertheboomunder
thehorizontal.
M085E600
More
than
max.allowabletiltangle
Beep!
RETRACTBOOM
ANDLOWERUNDER
THEHORIZONTAL.
fig.1‒6
• Donotusethemachineonamovingor
mobilesurfaceorvehicle.
• Donottouchorbeattachedthe
platformtoanynearbystructures.
M07Y9501
fig.1‒7
• Donotplacethingssuchassteelbeams
orpowerlinesacrosstheplatform,and
usetheboomtoliftthem.
M07Y9601
fig.1‒8
• Donotusetheboomorplatform
topushorpullpowerlinesorother
objects.
• Donotpushorpullanyobjectoutside
oftheplatform.
M07Y9H02
fig.1‒9
• Donotplaceladders,scaffoldsorother
devicesintheplatformoragainstany
partofthemachine.
• Donotplaceloadsoutsideofthe
platform.
