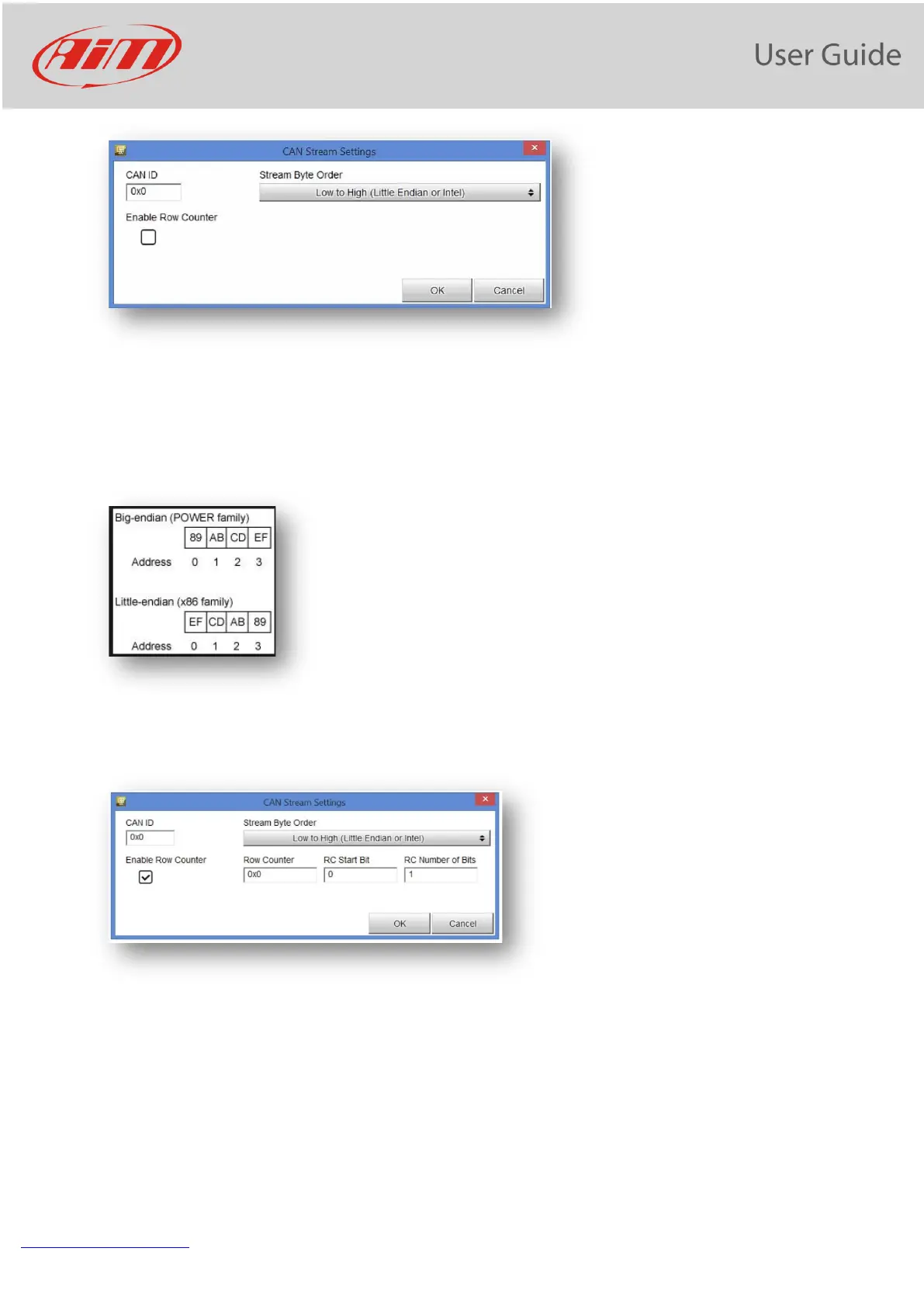

The fields to be set are:
- CAN ID
- Stream Byte Order. This last can be Little or Big Endian, in dependence upon the processor of the device.
Here an example of the different formats:
- Row Counter Enable: This field is used when we have to define a multiplexed stream, that is to say a
stream where the format depends upon a field, called Row Counter.
If you enable the Row Counter, you must specify its Start Bit, its Number of bits and the Value for every
single row to be defined.
After having set the different parameters, you click OK and a new window appears:
