Use and Maintenance Manual – A12 JE A15 JE A17 JE A12 JED A15 JED Series
5.2. Ground control panel and electric control unit
The ground control station contains some electronic boards necessary to operate the machine and to carry out safety checks.
The electric control unit (or electronic control board) is inside the cowling (near the electric pump).

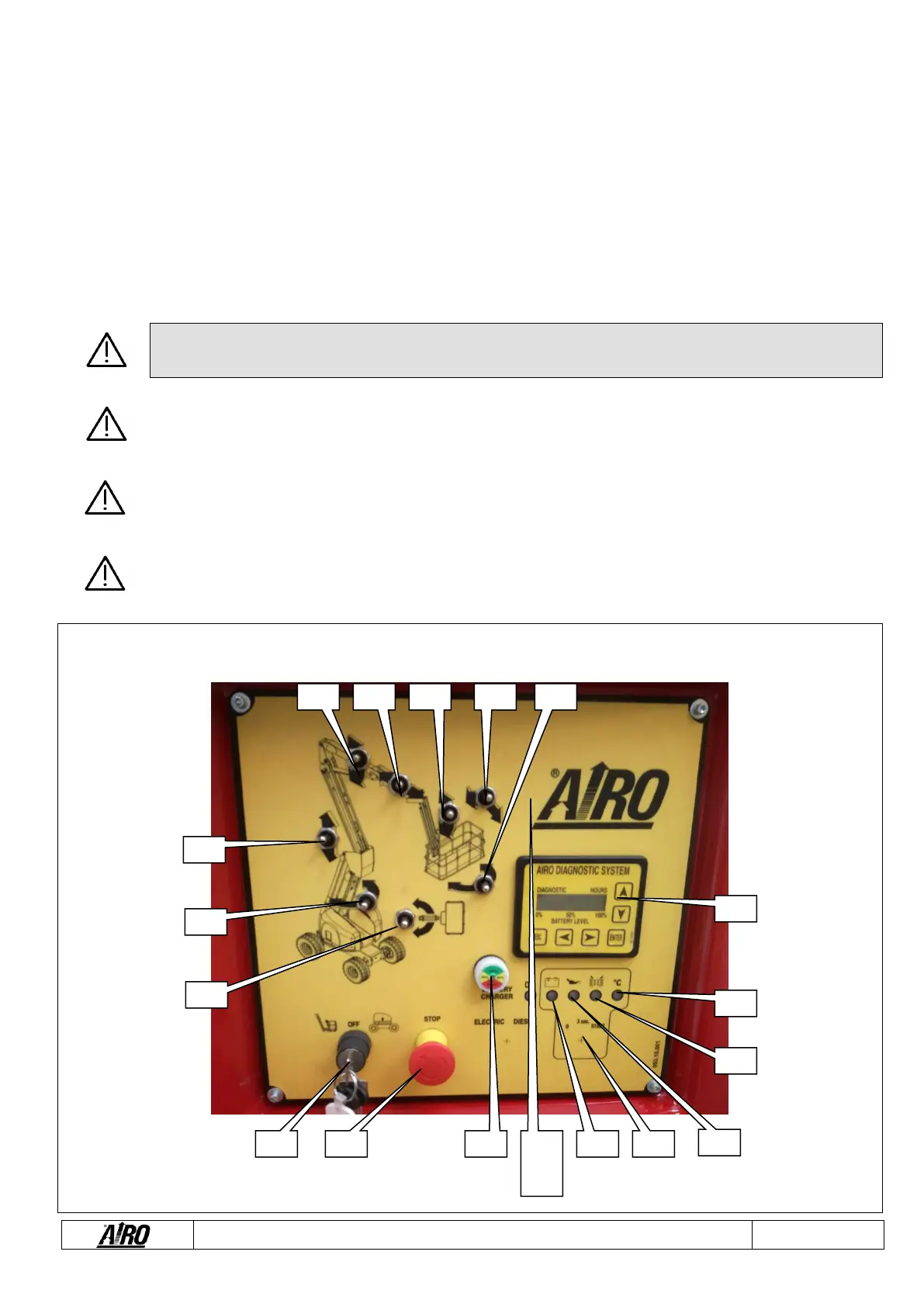

The ground control panel is located on the rotating turret (see paragraph "Location of main components") and is used to:
▪ Turn the machine ON/OFF.
▪ Select the control panel (ground or platform).
▪ Operate the platform in emergency cases.
▪ Display some operation parameters (working hours; various faults; battery charger operation; etc.).
IT IS FORBIDDEN
To use the ground control panel as a workstation when personnel is on the platform.
Use the ground control panel only to start/stop the machine, to select the control panel or in emergency
situations to allow the platform to be recovered.
Give the key to authorized persons and keep a duplicate in a safe place.
Always remove the on/off key at the end of work shifts.
Access to the electric control unit is allowed to specialized personnel only for maintenance and/or repair
purposes. Access the electric control unit only after the machine has been disconnected from any 230V or
380V power sources.
