7.3.2. Battery maintenance
7.3.2.1. Accessing the battery compartment
The battery compartments are located under the cowlings on the sides of the machine chassis. To access the
compartments and carry out maintenance operations, remove the cowlings (A), by performing the following steps:

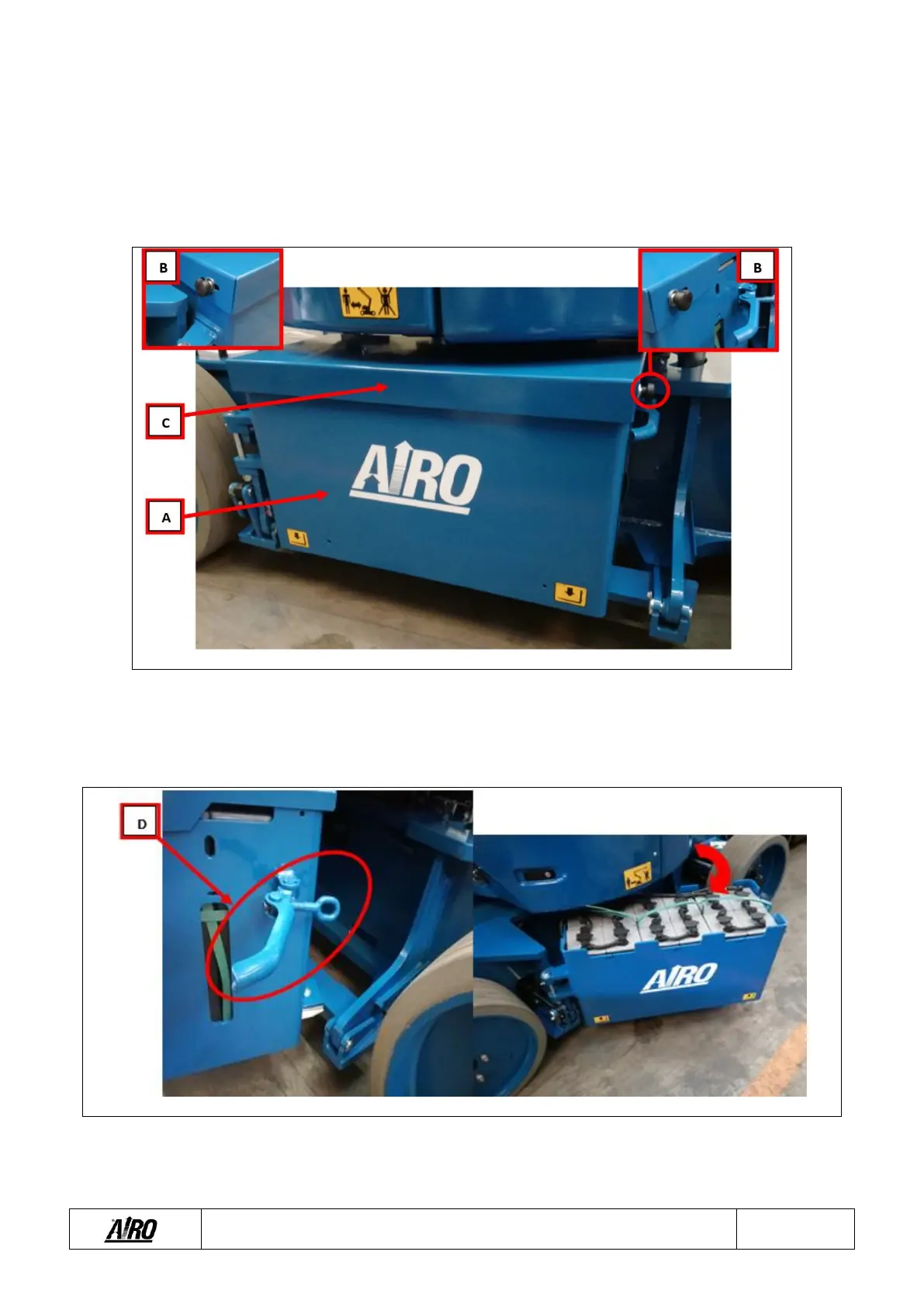

Fig.31
- Open the hook (D);
- Laterally remove the cowling (A) by pulling out the hook lever (D);
- Unscrew the plastic lobe knobs (B), located on both sides of the cowling;
- Remove the cover (C).
Fig. 32
