Solenoid valves and relevant movements:
▪ EV4 = Pantograph up
▪ EV5 = Pantograph down
▪ EV6 = Telescopic boom out
▪ EV7 = Telescopic boom in
▪ EV12 = Turret right rotation
▪ EV13 = Turret left rotation
▪ EV14 = Boom up
▪ EV15 = Boom down
▪ EV18 = Jib up
▪ EV19 = Jib down
▪ EV3 2 = Jib right rotation
▪ EV33 = Jib left rotation
WARNING: The emergency control can be stopped at any moment by releasing the lever or by
stopping the pump.
Once you have completed the manual emergency manoeuvre it is necessary to return everything to
the initial conditions and have the lever sealed by an authorized service center.

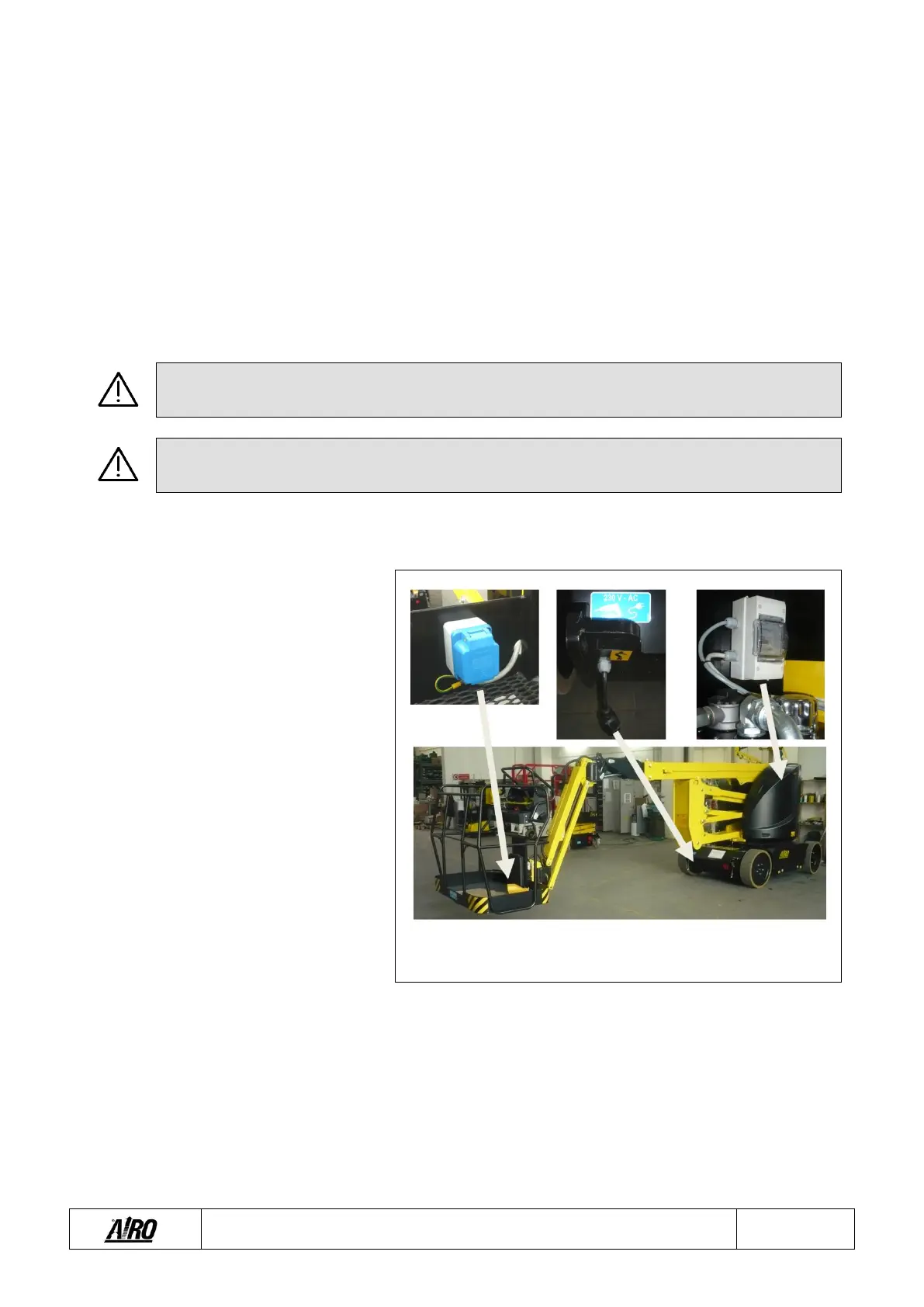

5.7. Socket for electric tool connection (Optional)
The work platform can be equipped with a
socket (230V Ac) enabling the operator to
connect the electric tools necessary to carry out
his operations.
To activate the electric line (see pictures above)
introduce a cable into the plug connected to the
230V AC 50 Hz mains, with all protections
according to the current standards in force. If
there is the circuit breaker switch (optional), to
activate the electric line set the switch to ON
position. It is advisable to check the earth-
leakage circuit breaker by means of the
specially provided TEST button.
The plugs and sockets equipped on standard
machines comply with EEC standards and can
therefore be used in EU member countries. On
request the machine can be equipped with plugs
and sockets in compliance with local standards
or with particular needs.
Fig. 12
