AJA io 4k - Chapter 3 - Io XT;4 K Operation; Front Panel Operation

Io XT/4K Capture, Display, Convert v14.0 17 www.aja.com
Chapter 3 – Io XT/4K Operation

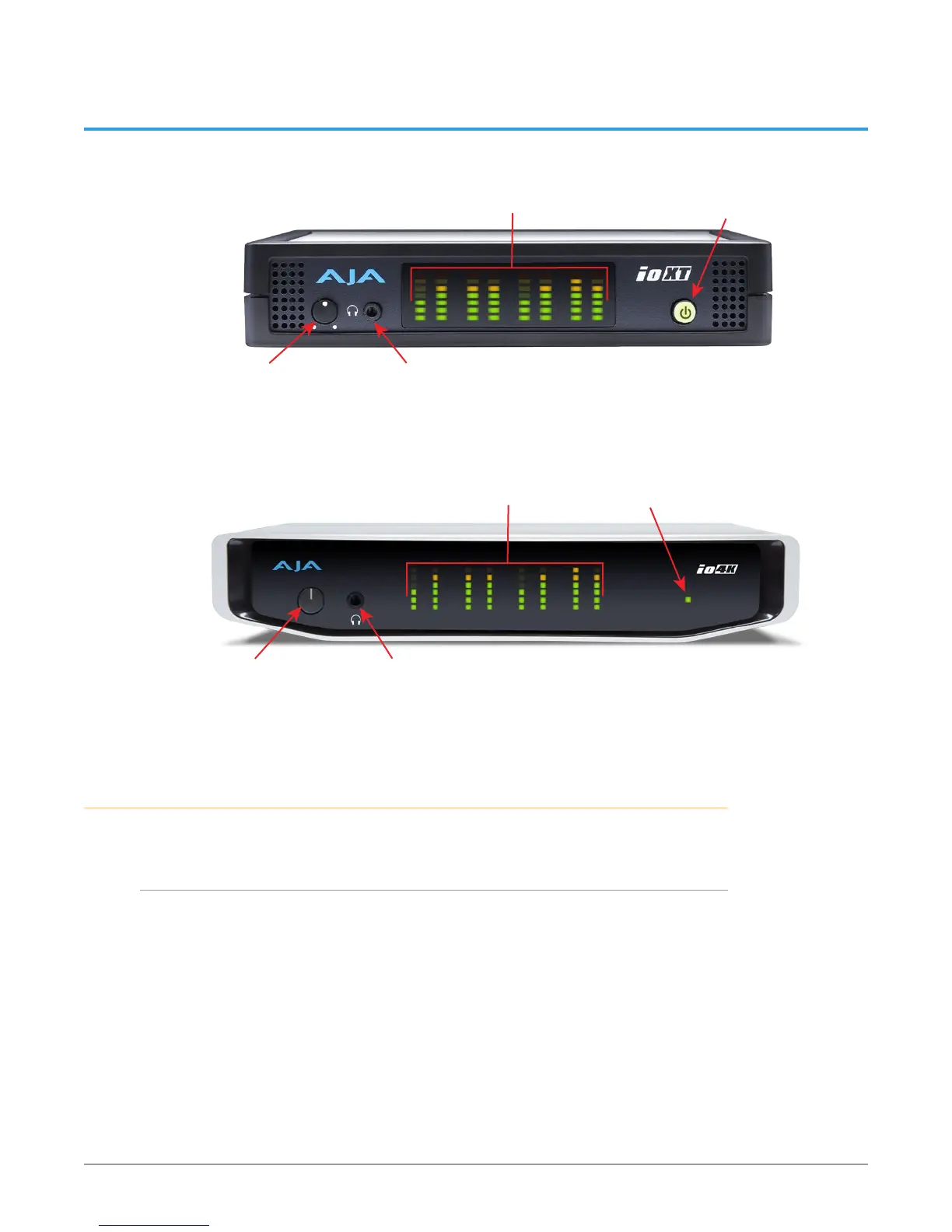

Figure 4. Io XT Front Panel Controls and Indicators
Power
Switch
Audio Level
Meters (8)
Monitor Output
Connector 1/8 in. TRS
Monitor
Gain Control
Figure 5. Io 4K Front Panel Controls and Indicators
Power
LED
Audio Level
Meters (8)
Monitor Output
Connector 1/8 in. TRS
Monitor
Gain Control
Front Panel Operation
The Io XT/4K front panel has the following controls and indicators:
Monitor Output and Gain Control
A 1/8 inch TRS connector is available for monitoring two channels of audio,
selectable in channel pairs using the Control Panel application. Typically used
with a pair of headphones.
The Monitor Gain knob on the left adjusts the monitor output level. Pushing in
the knob extends it (for adjustment) or recesses it (to prevent accidental changes).
