• Color Space - This pulldown lest you select from RGBA8bit, RGB10bit, or
YCbCr10bit.
• Audio Channels - This pulldown allows you to select the number of embedded
audio channels for the HDMI output.
• Stereo 3D - This pulldown lets you to select either Side-by-Side or Top-Bottom
(Stacked) output of left-eye and right-eye signals.
NOTE: This selection must agree with format selection in the third-party CineForm
Codec (NOT included with AJA Io XT) pulldown menu.
HDMI Input
The detected HDMI input video format is displayed and you’re given a chance to
configure the RGB range (SMPTE or FULL).

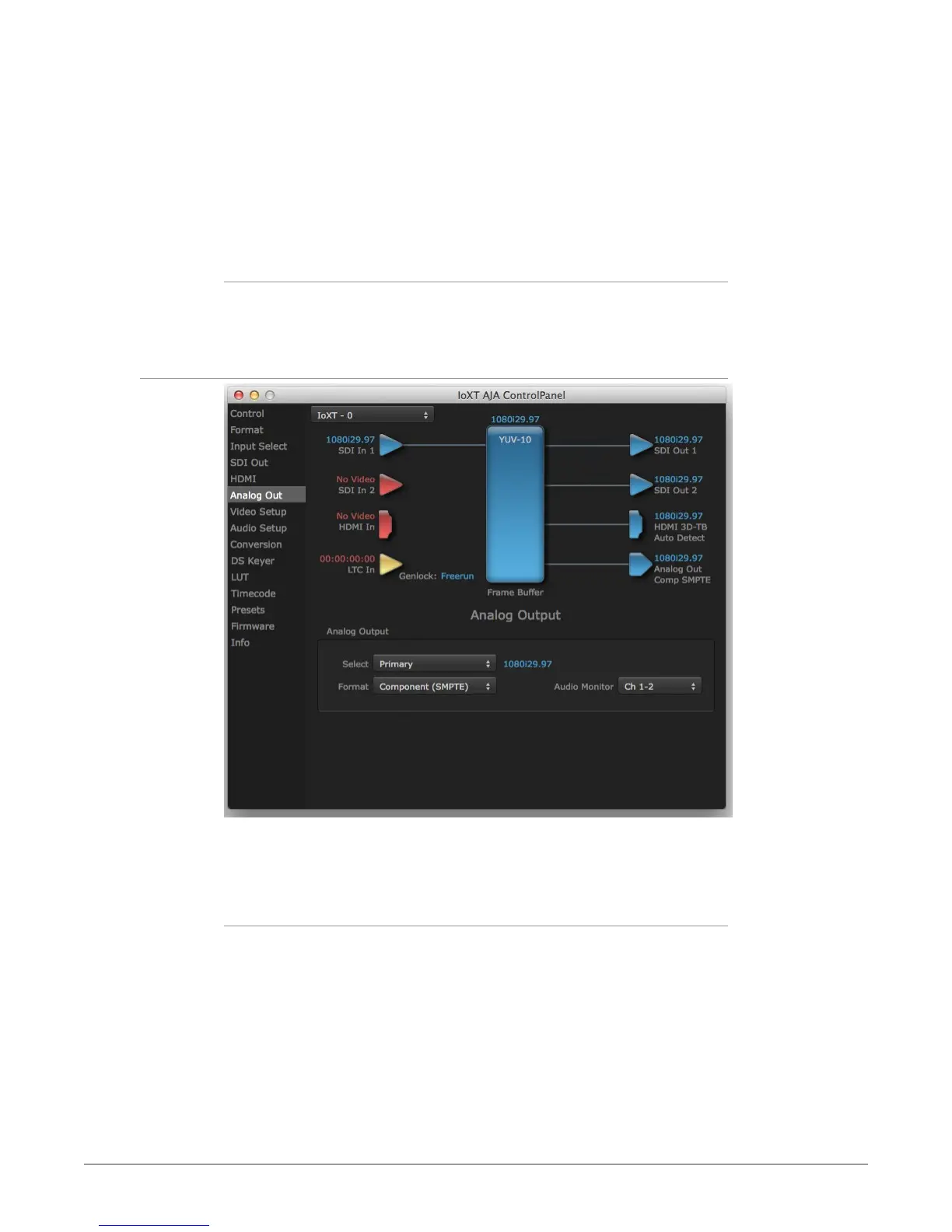

Analog Out Screen (Io XT Only)
Io XT provides a high-quality analog component or composite + Y/C output,
generally used for monitoring. This screen shows the current settings for that
analog output, and allows you to re-configure it when desired.
Analog Output
Select Primary or Secondary (any conversion applied) for the analog output; if a
conversion is applied, you’ll see the conversion icon appear on the block diagram.
Next, select the video format from the Format pulldown.
Analog formats can be:
• Composite +Y/C (one composite output and a simultaneous Y/C [S-Video]
output)
• Component (SMPTE/EBU N10)
• Component (Beta)
• Component (RGB)
