Io XT/4K Capture, Display, Convert v14.0 53 www.aja.com
Io 4K HDMI Screen in 4K Mode

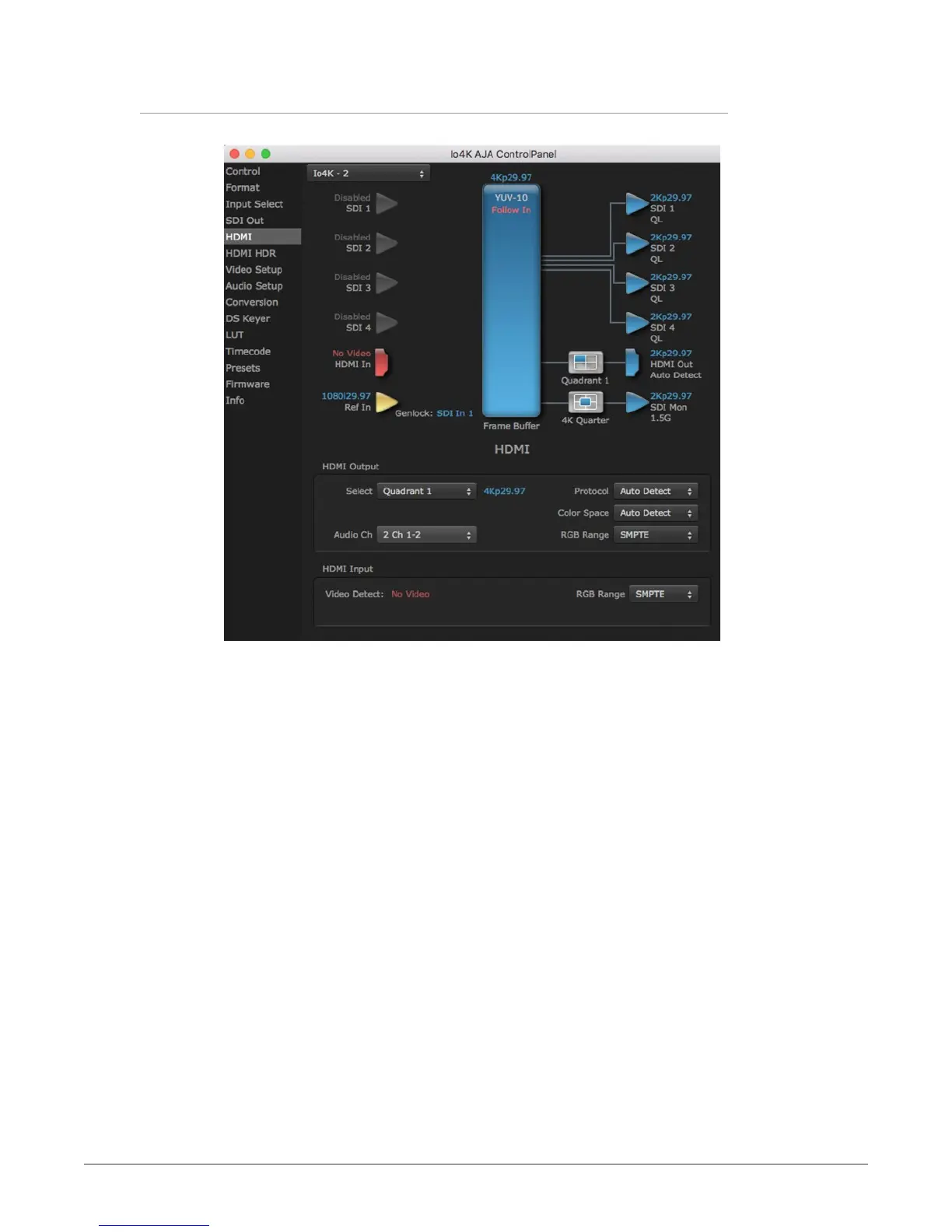

Figure 21. HDMI Output Screen with Quad HD Output Configuration
The HDMI screen allows you to make the same selections previously described for
Standard Mode when an SD, HD, or 2K format is selected.
For UltraHD/4K formats, an HDMI monitor output Select menu is available to
choose:
• Primary – the full 4K or UltraHD format
• 4K Quarter – a downconversion to 2K x 1080 in 4K or 1920 x 1080 for UltraHD.
