Io XT/4K Capture, Display, Convert v14.0 28 www.aja.com
SD to SD Conversion
This pulldown is for SD to SD aspect ratio conversion.
• Letterbox: this transforms SD anamorphic material to a letterboxed image.
• H Crop: will produce a horizontally stretched eect on the image; transforms
anamorphic SD to full frame SD
• Pillarbox: will produce an image in the center of the screen with black borders
on the left and right sides and an anamorphized image in the center
• V Crop: will transform SD letterbox material to an anamorphic image

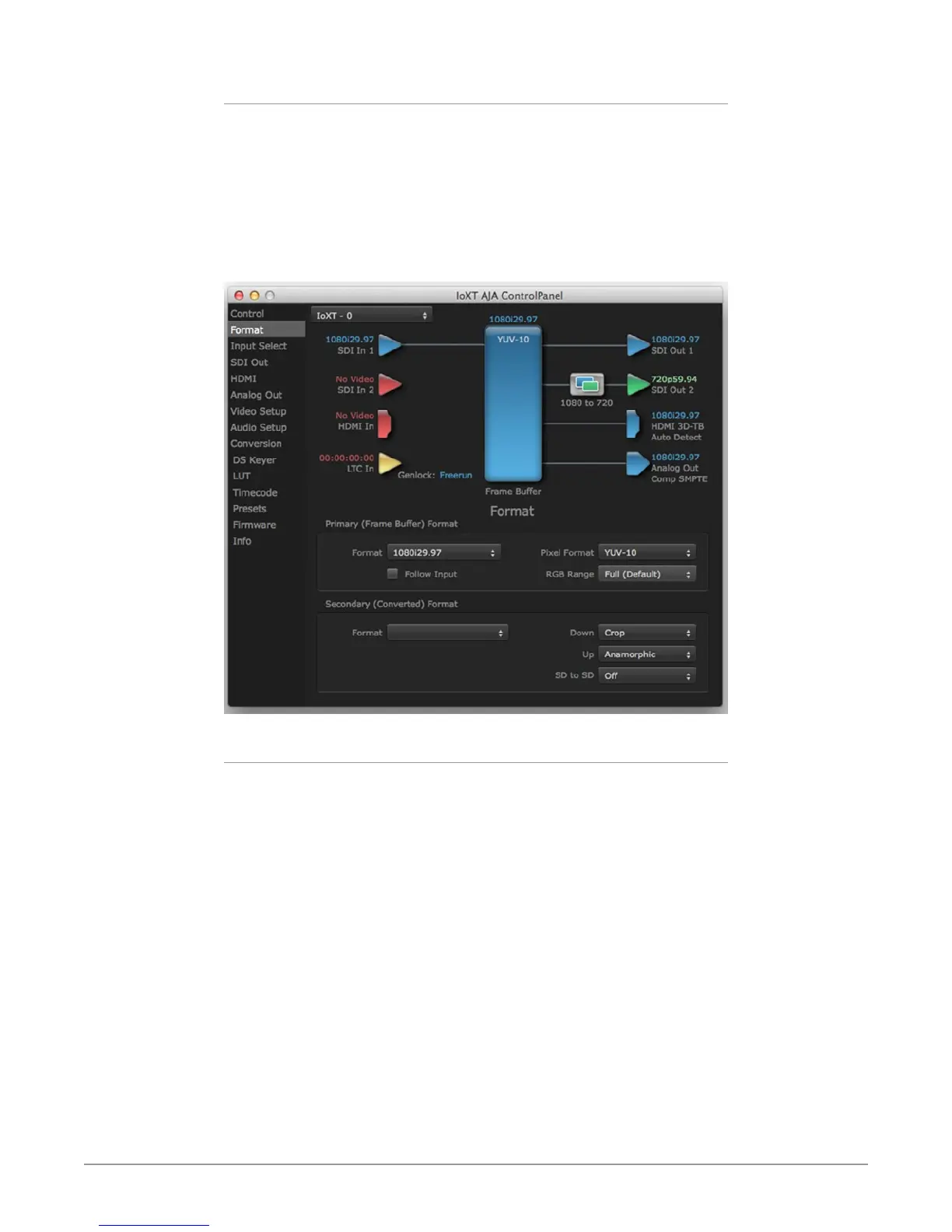

Figure 11. AJA Control Panel, Formats Screen, Io XT Cross-Conversion
UltraHD/4K Down-Conversion
Io 4K provides a dedicated SDI Monitor BNC that outputs a quarter-size image of
a selected UltraHD/4K signal format while operating in 4K Mode. For details, see
"Using Io 4K for UltraHD/4K" on page 45.
