Io XT/4K Capture, Display, Convert v14.0 49 www.aja.com

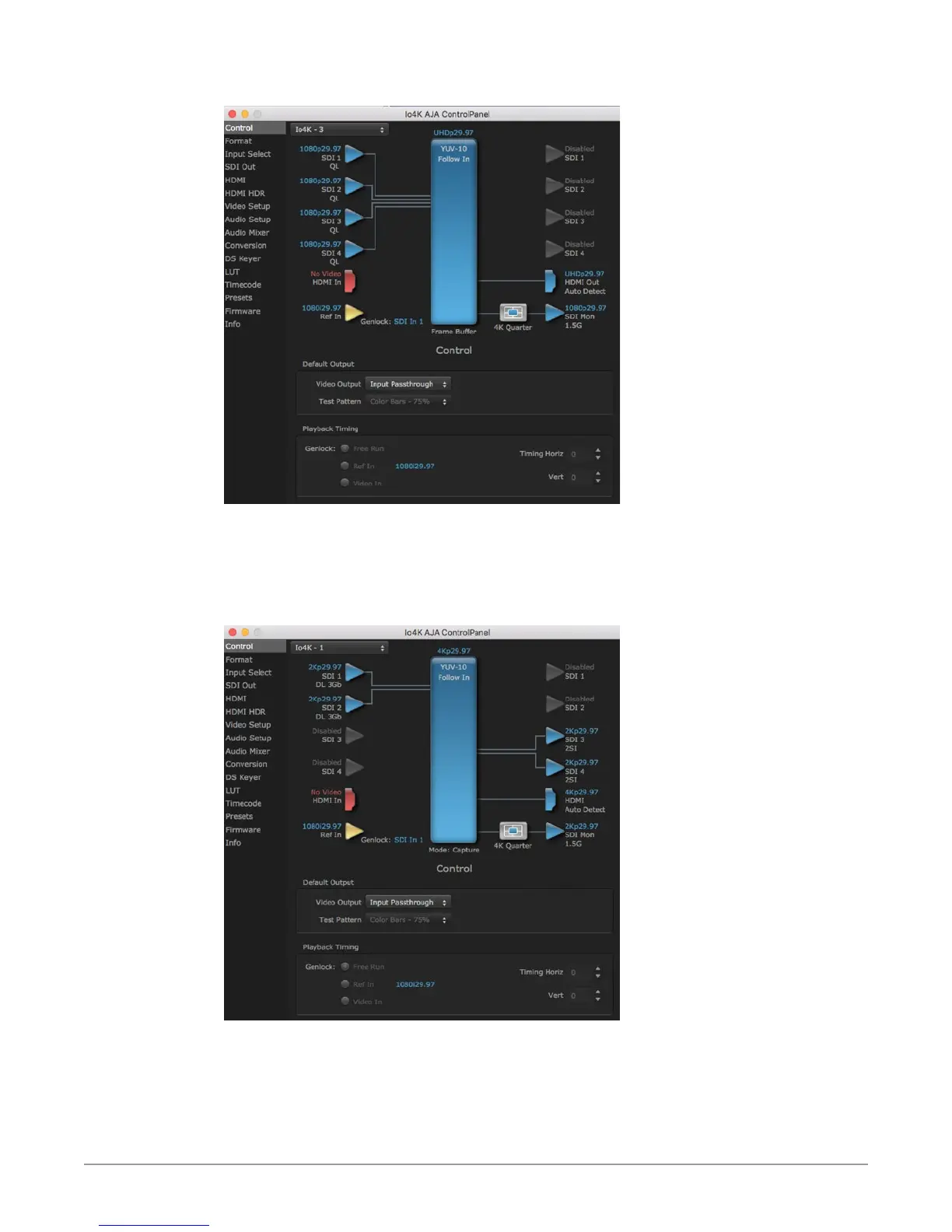

Figure 18. Control Screen with UltraHD 4 Link Input
If a 4K 29.97 two link input is connected and a UltraHD/4K 2-wire Source is
selected on the Input Select menu, two BNC connectors are used for input,
allowing the other two to be used for SID output. 4K signals report their links as
2K (Figure 19).
Figure 19. Control Screen with 4K 2 Link Input and Output
