Akuvox R20A Admin Guide

8
5.1.Obtain Device IP Address

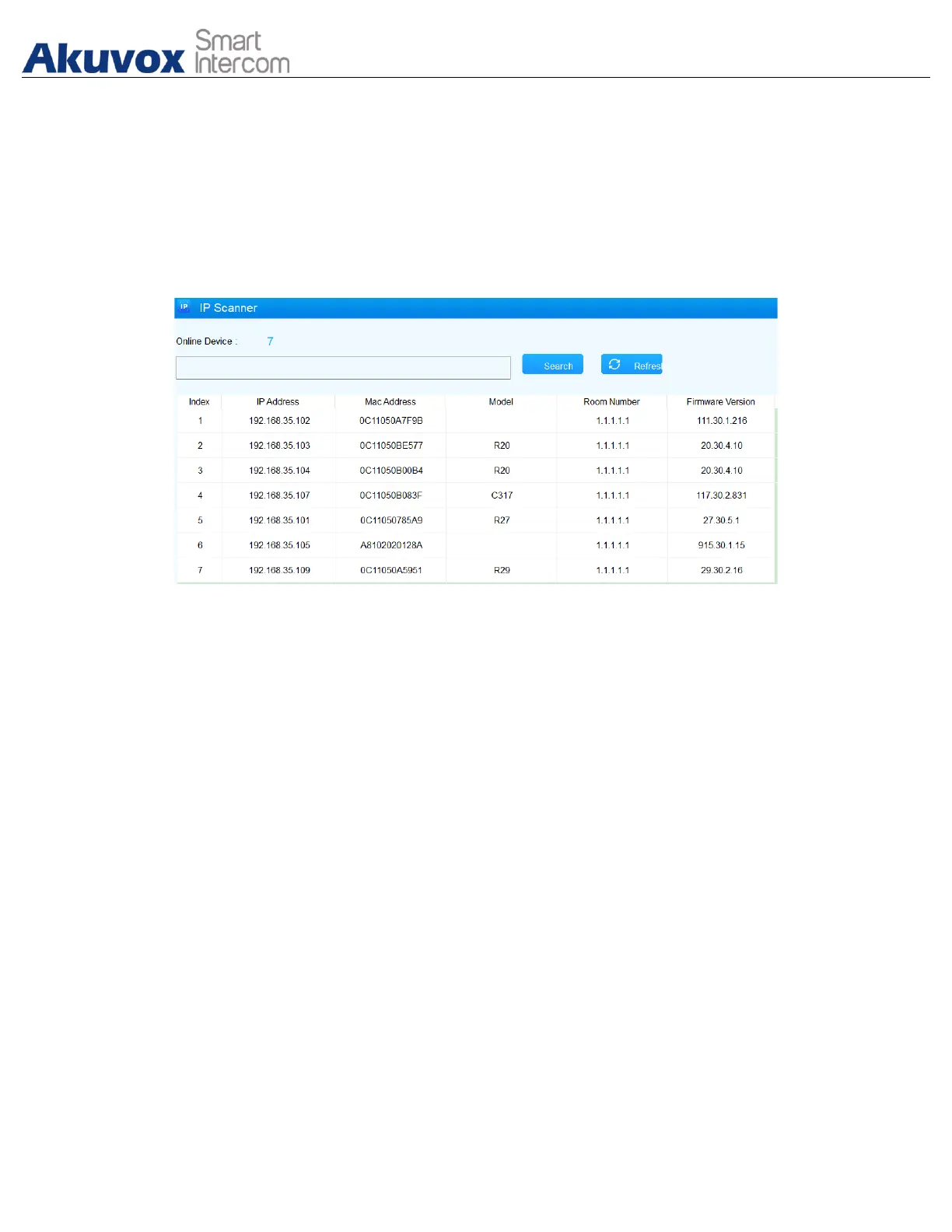

Check the Device IP address by holding the push button for 5s. Or searching the
device IP by the IP scanner in the same LAN network. Just click Scan tab in the
IP scanner to check the device IP.
5.2.Access the Device Setting on the Web
Interface
Enter the device IP address on the web browser in order to log in to device web
interface where you can configure and adjust parameters etc. The initial user
name and password are all “admin” and please be case-sensitive to the user
names and passwords entered.
AKUVOX SMART INTERCOM www.akuvox.com

Akuvox R20A Specifications

General

Audio	Built-in Microphone and Speaker
Installation	Wall-mounted
Ingress Protection	IP65
Card Reader	13.56MHz, Mifare
RS485	Yes
Camera	2MP
Network	10/100Mbps Ethernet
Protocols	SIP
Power	PoE or 12V DC
PoE	IEEE 802.3af
Relays	1
Input	2
