Akuvox R20A Admin Guide

37

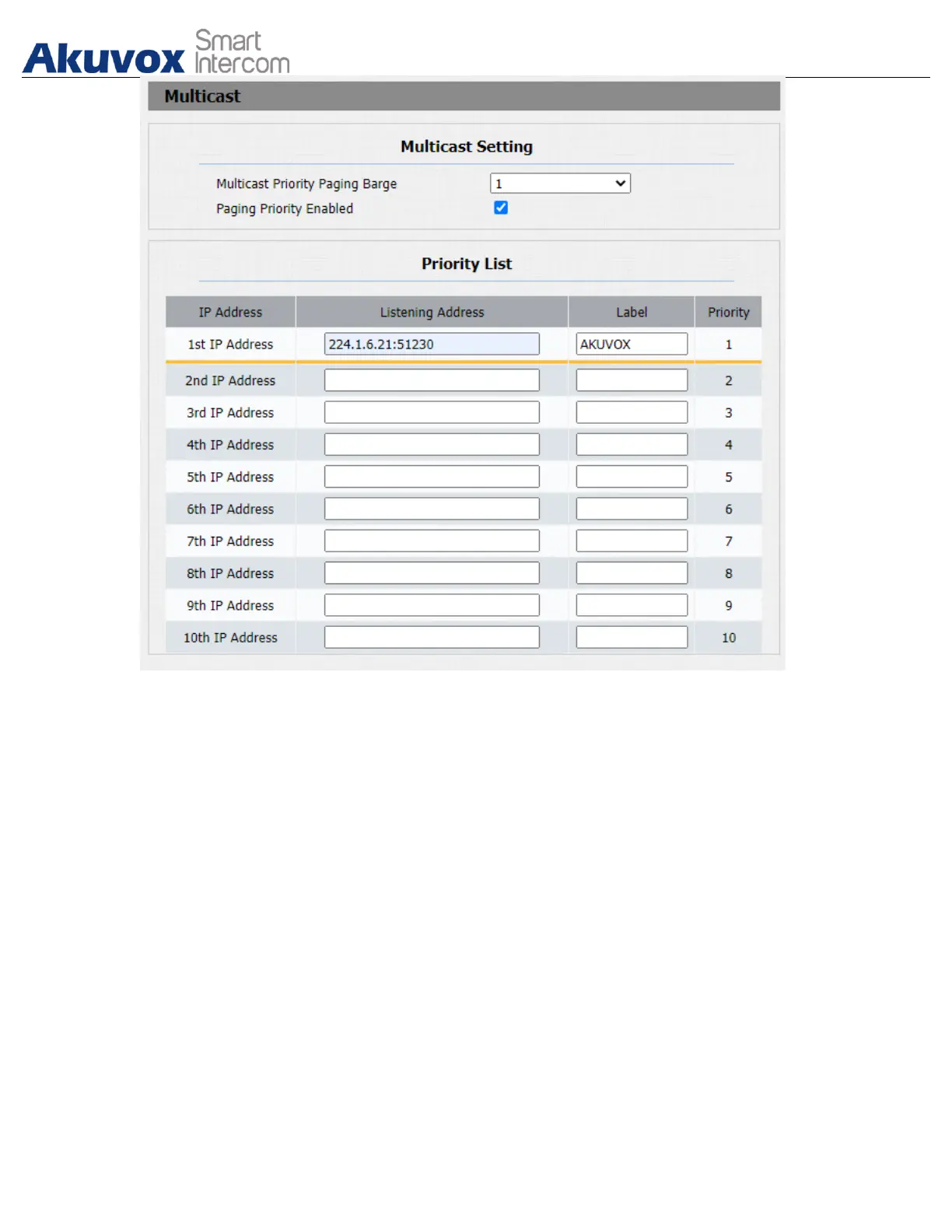

Parameters Set-up:
● Multicast Priority Paging Barge: multicast or how many multicast calls are
higher priority than SIP call, if you disable Paging Priority Active, SIP call will
have high priority.
● Paging Priority enabled: multicast calls are called in order of priority or not.
● Listening Address: enter the multicast IP address you want to listen. The
multicast IP address needs to be the same as the listened part and the
multicast port can not be the same for each IP address. Multicast IP address
is from 224.0.0.0 to 239.255.255.255.
● Label: enter the label for each listening address.
10.7.7.Configure Maximum Call Duration
Door phone allows you to set up the call time duration in receiving the call from
the calling device as the caller side might forget to hang up the intercom device.
AKUVOX SMART INTERCOM www.akuvox.com

Akuvox R20A Specifications

General

Audio	Built-in Microphone and Speaker
Installation	Wall-mounted
Ingress Protection	IP65
Card Reader	13.56MHz, Mifare
RS485	Yes
Camera	2MP
Network	10/100Mbps Ethernet
Protocols	SIP
Power	PoE or 12V DC
PoE	IEEE 802.3af
Relays	1
Input	2
