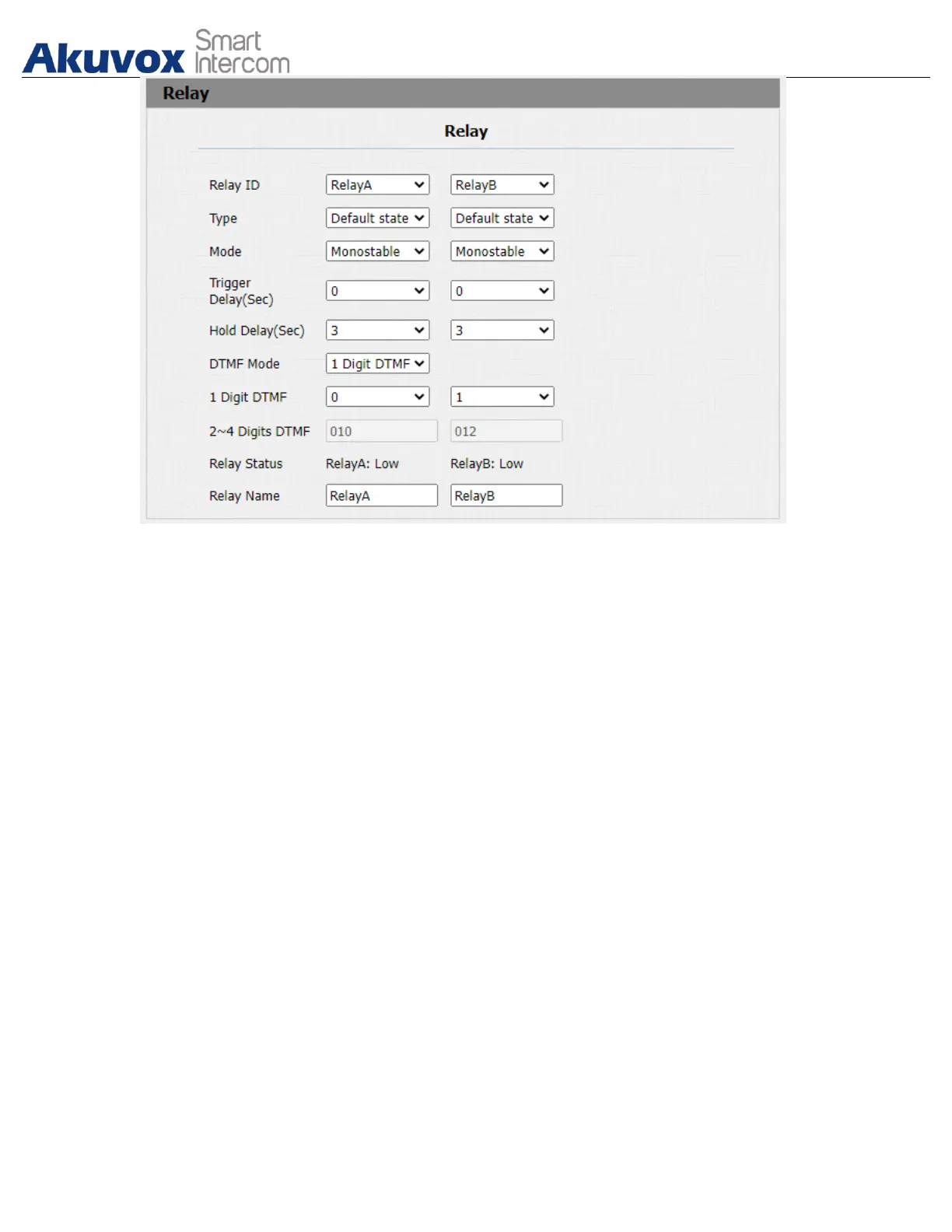

Parameter Set-up:
● Relay ID: you are allowed to set up three relay switches in total for the door
access control ( R29Z/R29ZL has only 1 relay).
● Type: if Default state is selected, the Relay Status shows Low which means
the door is closed, the Relay Status shows which means the door is opened.
If Invert State is selected, the Relay Status hows High which means the door
is closed, and Low means the door is opened.
● Mode: there are two modes Monostable and Bistable. If Monostable is
selected, the relay status will be automatically reset within the relay delay
time after the relay is triggered. If Bistable is selected, relay status will be
reset after the relay is triggered again.
● Trigger Delay (Sec): set the relay trigger delay timing (Ranging from 1-10
Sec.) For example, if you set the delay time as “5” sec. then the relay will not
be triggered until 5 seconds after you press “unlock“ tab.
● Hold Delay (Sec): set the relay hold delay timing (Ranging from 1-10 Sec.)
For example, if you set the hold delay time as “5” Sec. Then the relay will
resume the initial state after maintaining the triggered state for 5s.
● DTMF Mode: select the number of DTMF digits for the door access control
(Ranging from 1-4 digits ) For example, you can select 1 digit DTMF code or
2-digit DTMF code, etc., according to your need.
