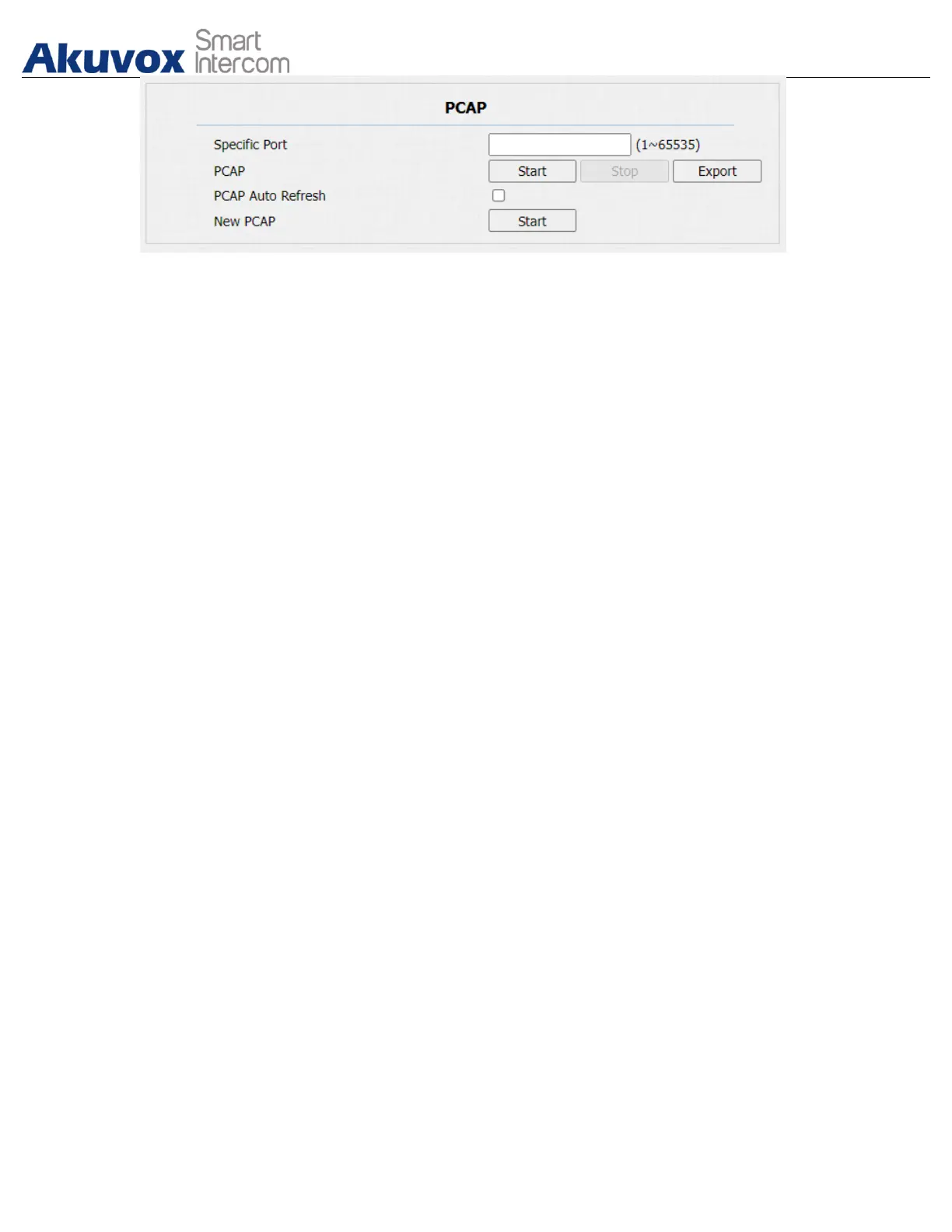

Parameter Set-up:
● Specific Port: select the specific ports from 1-65535 so that only the data
packet from the specific port can be captured. You can leave the field blank
by default.
● PCAP: click Start tab and Stop tab to capture a certain range of data
packets before clicking Export tab to export the data packets to your Local
PC.
● PCAP Auto Refresh: select “Enable” or “Disable” to turn on or turn off the
PCAP auto fresh function. If you set it as “Enable” then the PCAP will
continue to capture data packets even after the data packets reached their
1M maximum in capacity. If you set it as “Disable” the PCAP will stop data
packet capturing when the data packet captured reached the maximum
capturing capacity of 1MB.
● New PCAP: click start to capture bigger data package.
