Akuvox SP-R5xP User Manual

Administrator’s Guide for Akuvox SP-R5xP IP Phones
Akuvox Proprietary and Confidential. Copyright © 2014 Akuvox network Co., Ltd..
Page 124 of 221

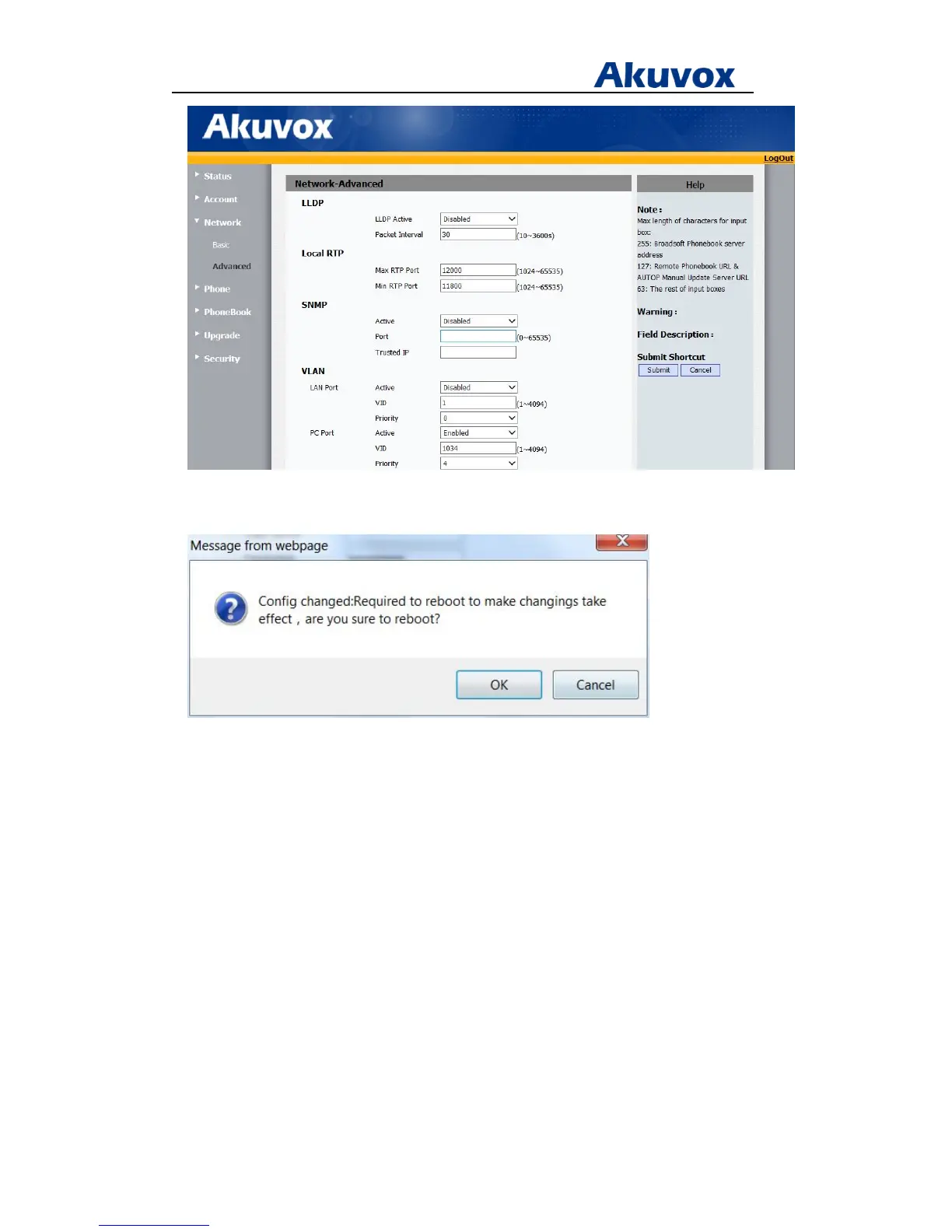

5. Click Submit to accept the change.
A dialog box pops up to prompt that the settings will take effect after a reboot.
6. Click OK to reboot the IP phone.
To configure VLAN for Internet port (or PC port) via phone user interface:
1. Press Menu > Settings > Advanced Settings (password: admin) > Network> VLAN > LAN
Port (or PC Port).
2. Press Up or Down to select the desired value from the VLAN Status field.
3. Enter the VLAN ID (1-4094) in the VID Number field.
4. Enter the priority value (0-7) in the Priority field.
5. Press the Save to accept the change
The IP phone reboots automatically to make settings effective after a period of time.
