OmniSwitch 6465 Chassis Details
OS6465-P6

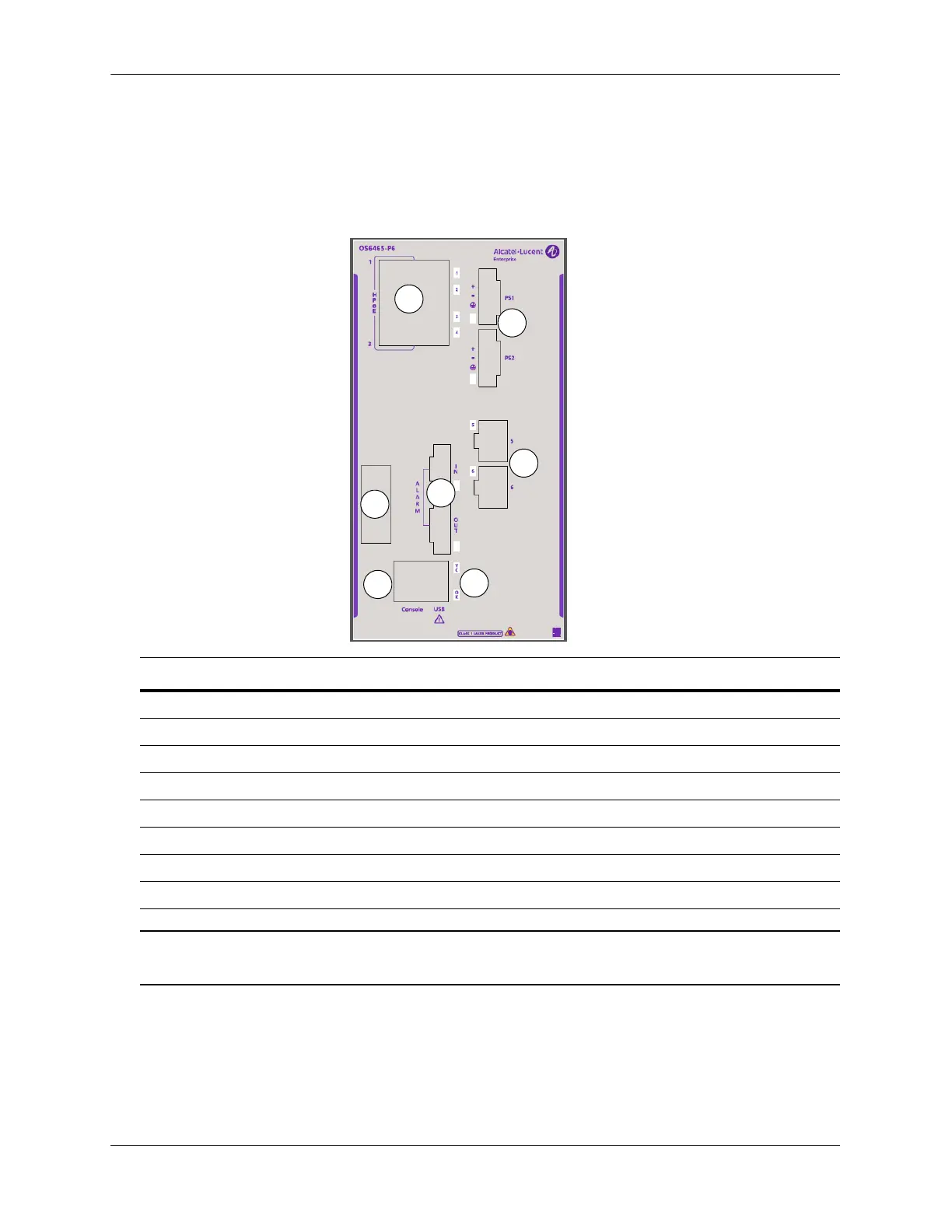

OS6465-P6 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
Item Description
A
(1-4) 10/100/1000Base-T 802.3at PoE ports (Odd-numbered ports support 60W)
B
Alarm Connectors
C
Console port
D
USB port
E
Power Supply Connectors
F
(5-6) 100/1000Base-X SFP ports
G
Grounding Lug
LEDs
See “Chassis Status LEDs” on page 3-13
