Chassis and Power Supplies OmniSwitch 6465 Chassis Details
OmniSwitch 6465 Hardware Users Guide December 2019 page 3-11
OS6465T-P12

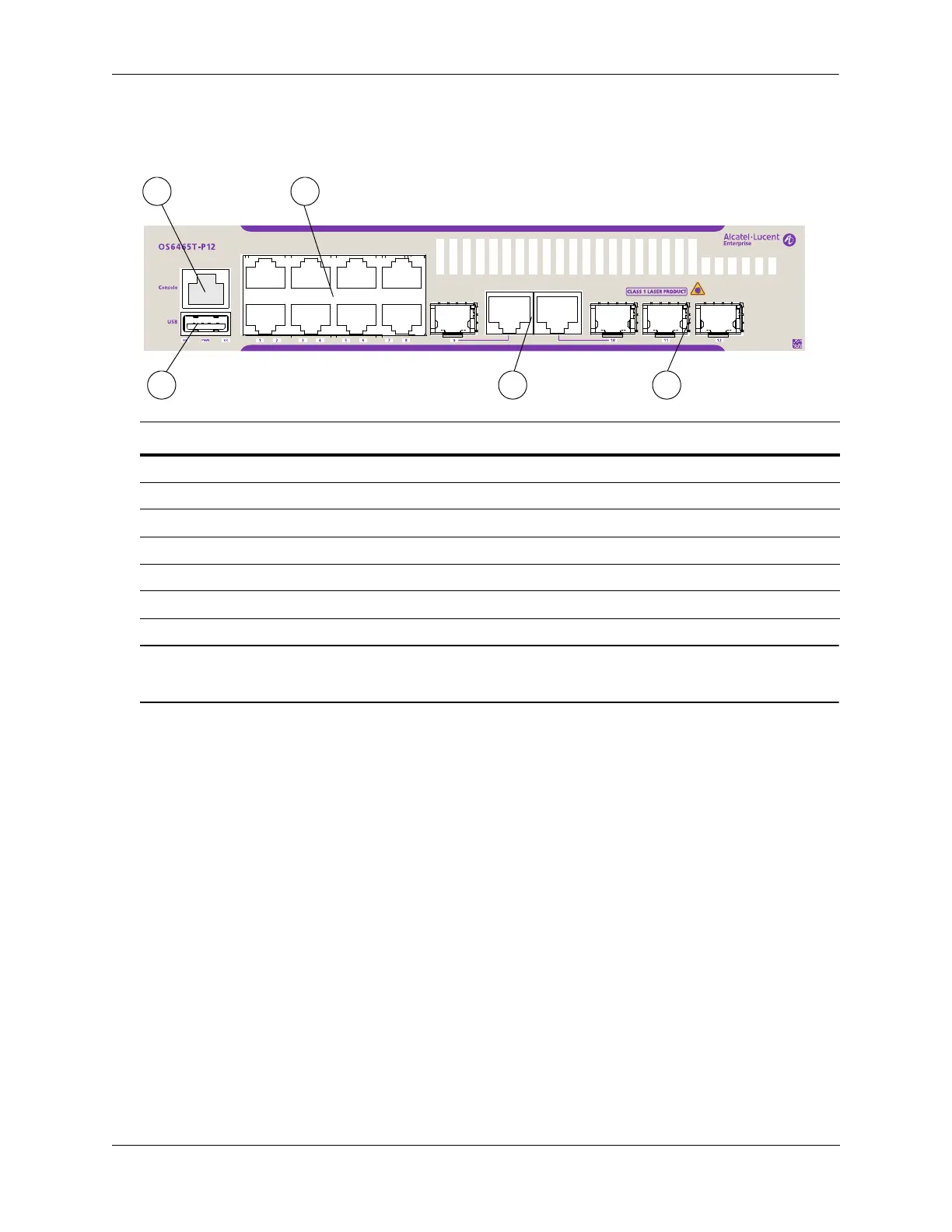

OS6465T-P12 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
Item Description
A
Console port
B
USB port
C
(1-8) 10/100/1000Base-T 802.3at PoE RJ-45 ports
D
(9-10) 10/100/1000Base-T RJ-45 (non-Poe) or 100/1000Base-X SFP combo ports
E
(11-12) 1000Base-X SFP ports
LEDs
See “Chassis Status LEDs” on page 3-13
A
B
C
D E
