Mounting the Switch Chassis and Power Supplies
page 3-22 OmniSwitch 6465 Hardware Users Guide December 2019

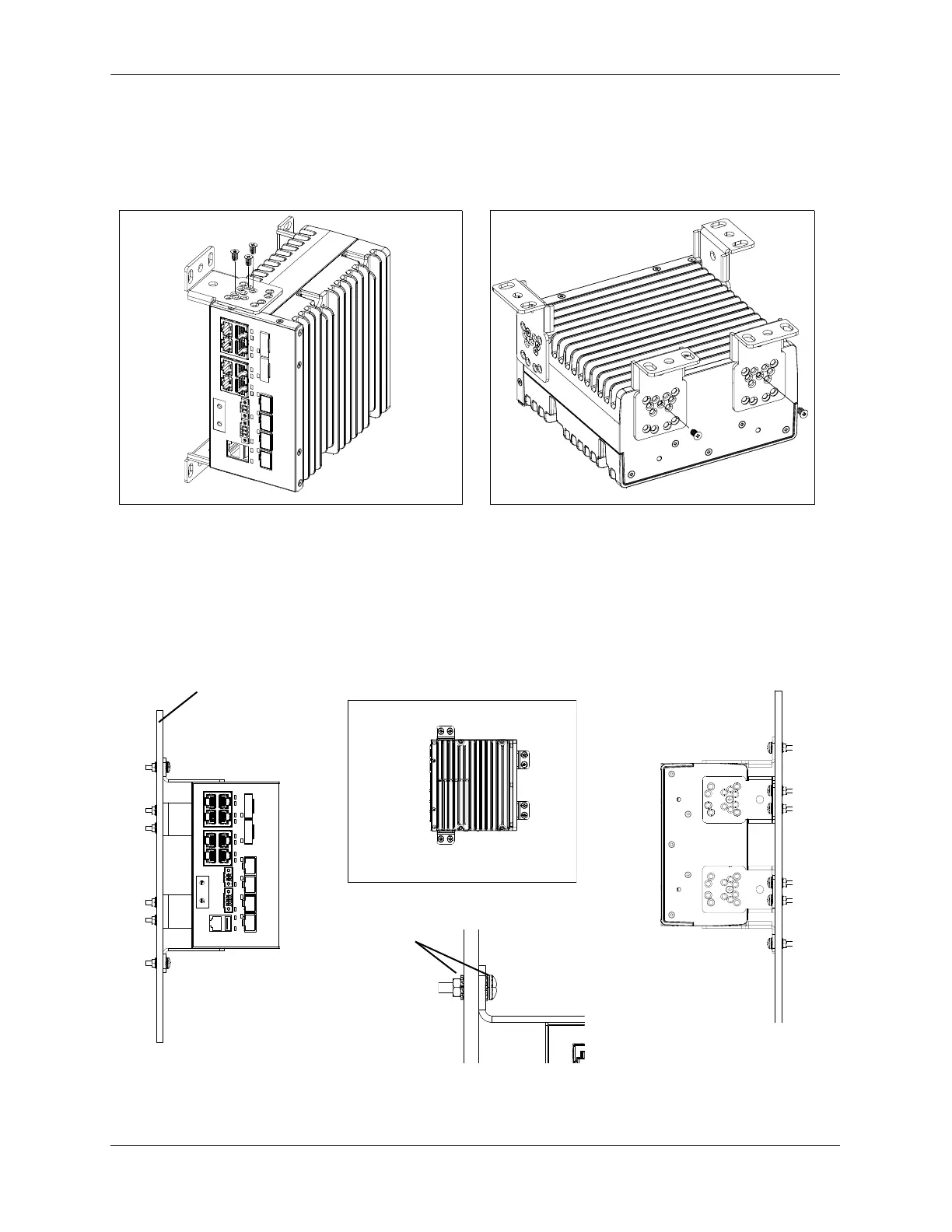

Side Mounting Steps
The OmniSwitch chassis can be side/wall mounted using the OS6465-WALL-MNT kit.
1 Attach two (2) side brackets using three (3) M4X8MM screws each.
2 Attach two (2) rear brackets using two (1) M4X8MM screws each.
3 Lift and position the switch until the brackets are flush with the mounting surface and mark/align the
position of the holes in the brackets on the mounting surface. Drill holes if necessary.
4 Secure the four (4) mounting brackets to the mounting surface using two (2) M5X15MM bolts, four (4)
washers, and two (2) nuts per bracket.
Side Brackets
Rear Brackets
